Travelling Block and Hook The maximum hook load 900 KN Outer diameter pulley 762 mm

Ask Lasest Price
Brand Name :	ATO
Payment Terms :	L/C, T/T
Supply Ability :	10 PIECES PER MONTH
Delivery Time :	10-15 WORK DAYS

Add to Cart

Product Details
Company Profile

Travelling Block and Hook The maximum hook load 900 KN Outer diameter pulley 762 mm

Travelling Block and Hook The maximum hook load 900 KN Outer diameter pulley 762 mm

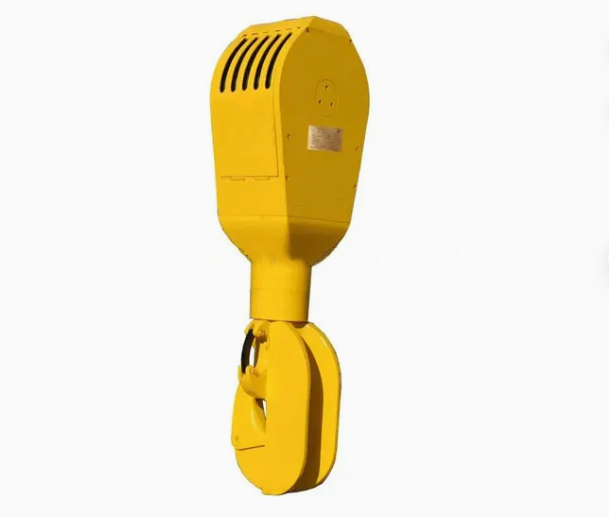

Descriptions of Travelling Block and Hook The maximum hook load 900 KN Outer diameter pulley 762 mm:

The surface of pulley grooves is processed with a quenching treatment so as to ensure its wear-resistance and longevity.
The main bearing is made of high strength alloy steel and NDT will be completed after production.
The spring and hydraulic buffering devices of the hook block are available for protection of the drilling pipe joints.

Specifications :

Model		YC90	YC135	YC170	YC225	YC315	YC450	YC585
The maximum hook load	KN	900	1350	1700	2250	3150	4500	5850
The maximum hook load	US ton	100	150	200	250	350	500	650
Outer diameter pulley	mm	762	915	915	1120	1270	1524	1524
Outer diameter pulley	in	30	36	36	44	50	60	60
Pulley number		4	4	5	5	6	6	7
Rope diameter	mm	26	26	29	32	35	38	42
Rope diameter	in	1	1	1 1/8	1 1/4	1 3/8	1 1/2	1 5/8
Dimensions	mm	1500×806	1800×960	2100×960	2294×1190	2680×1350	3075×1600	3100×1600
(Length × width × height)	mm	×533	×610	×630	×630	×974	×800	×965
	in	59×32×21	71×38×24	83×38×25	90×47×25	105×53×38	121×63×32	122×63×38
Quality	kg	1810	2200	3010	3805	6842	8135	9600
Quality	Ib	3990	4850	6636	8389	15084	17930	21160
