Drilling Rig Componenets API 8c Oilfield Drilling Hooks Max. hook load 2250 kN

Ask Lasest Price
Brand Name :	ATO
Payment Terms :	L/C, T/T
Supply Ability :	10 PIECES PER MONTH
Delivery Time :	10-15 WORK DAYS

Add to Cart

Product Details
Company Profile

Drilling Rig Componenets API 8c Oilfield Drilling Hooks Max. hook load 2250 kN

Drilling Rig Componenets API 8c Oilfield Drilling Hooks Max. hook load 2250 kN

Descriptions of Drilling Rig Componenets API 8c Oilfield Drilling Hooks Max. hook load 2250 kN:

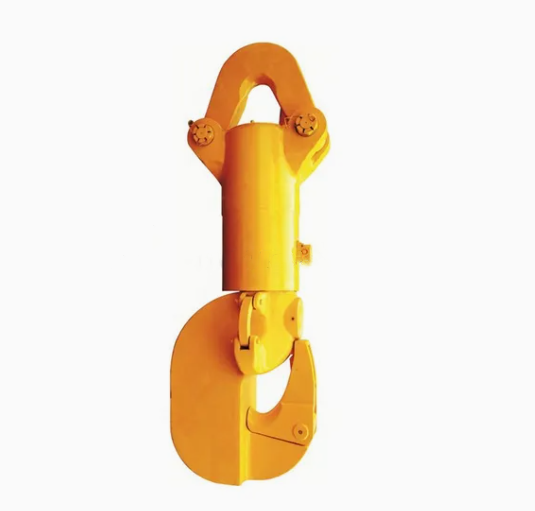

Drilling Hook is provided with a braking device to lock up & lock out the body. The body, the bail, and the bail support are cast with special alloy steel. Equipped with a hydraulic snubber assembly toprotect drill pipe joints when making up/breaking out connections.At the hook there is a reliable safety device. The primary-load-carrying parts of hook are subject to NDE test.

Specifications :

Model	DG225	DG315	DG450	DG675
Max. hook load kN	2250	3150	4500	6750
Major-hook opening mm (in)	190 (7 1/2)	220 (8 5/8)	220 (8 5/8)	240 (9 7/16)
Diameter of Major-hook mm (in)	160 (6 1/4)	180 (7)	180 (7)	228 (9)
Spring travel mm (in)	180 (7)	200 (8)	200 (8)	220 (8 7/10)
Overall dimension (LxWxH) mm	2545x720x750	2953x890x880	2950x890x880	3600x1110x1020
