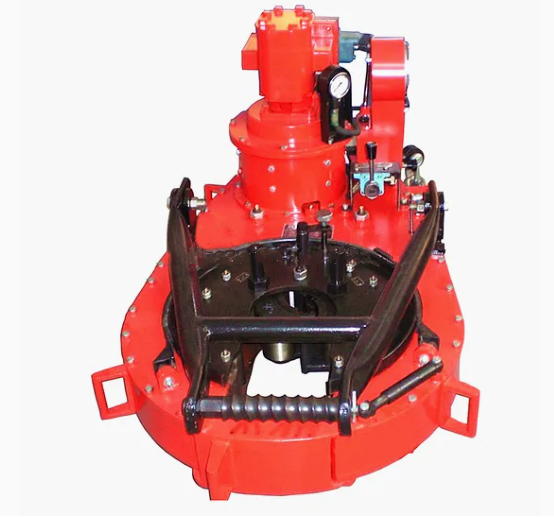

Drill Pipe Power Tong ZQ Series Max. torque 125 kN.m Stroke of shifting sylinder 1500 mm

Ask Lasest Price
Brand Name :	ATO
Payment Terms :	L/C, T/T
Supply Ability :	10 PIECES PER MONTH
Delivery Time :	10-15 WORK DAYS

Add to Cart

Product Details
Company Profile

Drill Pipe Power Tong ZQ Series Max. torque 125 kN.m Stroke of shifting sylinder 1500 mm

Drill Pipe Power Tong ZQ Series Max. torque 125 kN.m Stroke of shifting sylinder 1500 mm

Descriptions of Drill Pipe Power Tong ZQ Series Max. torque 125 kN.m Stroke of shifting sylinder 1500 mm:

ZQ Series drill pipe hydraulic power tong are designed and manufactured according to API Spe 7K"specification for drilling equipment" drill pipe power tong ZQ203-100 Hydraulic power tong is a combination of spinning tong and torque tong. It substitutes cathead, suspension tong and spinning rope in making-up and breaking out.

Specifications :

Model		ZQ203-125I	ZQ203-100	ZQ203-100II	ZQ203-100III	ZQ162-50	ZQ127-25
Size range	mm	127-203	127-203	127-203	127-203	85-162	65-127
Size range	in	31/2coupling-8body	31/2coupling-8body	31/2coupling-8body	31/2coupling-8body	23/8coupling-5body	23/8coupling-31/2body
Max. torque	kN.m	125	100	100	100	50	25
Max. torque	ft.lbf	92200	73750	73750	73750	36880	18440
The speed of tong head Hi.	rpm	40	40	40	40	60	65
The speed of tong head Lo.	rpm	2.7	2.7	2.7	2.7	4.1	10.5
Hydraulic system pressure rating	MPa	20	16.6	16.6	16.6	16	12
Hydraulic system pressure rating	psi	2900	2400	2400	2400	2320	1740
Hydraulic system flow rating	L/min	114	114	114	114	120	180
Hydraulic system flow rating	gpm	30	30	30	30	32	48
Stroke of shifting sylinder	mm	1500	1500	1500		1000	1000
Stroke of shifting sylinder	in	59	59	59		39.4	39.4
Moving distance of tong	mm				0-1500
Moving distance of tong	in				0-59
Lifting distance of tong	m			0-485	0-800
Lifting distance of tong	in			0-19	0-31.5
Overall dimensions	mm	172010501750	170010001400	170010001400	175016502050	15708001190	1110790820
Overall dimensions	in	684169	673955	673955	696581	623147	443132
Weight	kg	2600	2400	2500	3250	1500	620
Weight	lb	5730	5290	5510	7165	3310	1366
