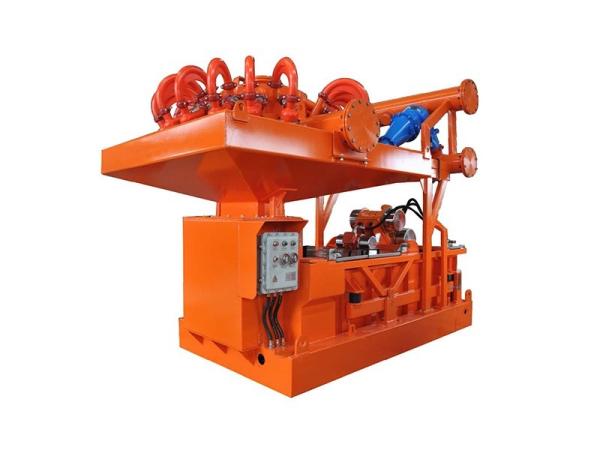

Mud Cleaner Screen Dim 1050×700×40 (Mm) Main Vibrator Motor 1500rpm 2×2.2kw

Mud Cleaner Screen Dim 1050×700×40 (Mm) Main Vibrator Motor 1500rpm 2×2.2kw

Descriptions of Mud Cleaner Screen Dim 1050×700×40 (Mm) Main Vibrator Motor 1500rpm 2×2.2kw:

The desander and desilter onboard are separately detachable and take up smaller space due to its compact structure.
Electrical devices and controls comply with explosion proof standards for drilling application. Key electrical components are of imports.

Both desander and desilter are equipped with easily replaceable nozzles.

Plashes are prevented by stainless steel covers. The entire covering is designed to turn in sync with the framebox.

Marine-class painting is applied, ensuring a longer service life regardless of constant wash-out by drilling ﬂuid.

Specifications:

Model	D-4×I	L-4×Ⅰ	L-5×Ⅱ
Vibration Mode	Elliptical-Linear	Linear	Linear
Max.Cap.(GPM)	1056	1056	1056
Main Vibrator Motor	1500rpm 2×2.5KW	1500rpm 2×2.5KW	1500rpm 2×2.5KW
Aux. Motor	1500rpm 0.4kW	/	/
Angle Adjustor	Worm-gear	Worm-gear	Worm-gear
No. of Screens	4	4	5
Screen Dim.(mm)	1050×700×40	1050×700×40	1165×585×40
Meshes Applicable	80〜325	80〜325	80〜325
Sieving Area(㎡)	2.92	2.92	3.4
G force(g)	≤7.5	≤7.5	≤7.0
Amplitude(mm)	≤7	≤7	≤6.4
Angles adjustable(°)	0〜+5°	0〜+5°	0〜+5°
Ex-Code	ExdⅡBT4 or IECEx	ExdⅡBT4 or IECEx	ExdⅡBT4 or IECEx
Ingress Code	IP65	IP65	IP65
Ambient	Temp.: -20〜+55℃ Rh≤90%	Temp.: -20〜+55℃ Rh≤90%	Temp.: -20〜+55℃ Rh≤90%
Power Rating	AC380V/50Hz	AC380V/50Hz	AC380V/50Hz
Wt.of Single Unit(kg)	2050kg	2000kg	2500Kg
Overall Dim.(L×W×H)	3300×1530×1400	3300×1530×1400	3800×1645×1500
