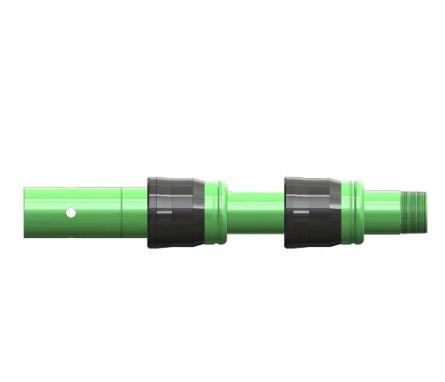

High Pressure Hydraulic Packer Max OD. 5.51 in Min ID. 2.44 in Pressure 5000-10000 psi

Ask Lasest Price
Brand Name :	ATO
Payment Terms :	L/C, T/T
Supply Ability :	10 PIECES PER MONTH
Delivery Time :	10-15 WORK DAYS

Add to Cart

Product Details
Company Profile

High Pressure Hydraulic Packer Max OD. 5.51 in Min ID. 2.44 in Pressure 5000-10000 psi

Hydraulic Packer Max OD. 5.51 (in) Pressure 5000-10000 (psi) Temp 250-300 (°F)

Descriptions of Hydraulic Packer Max OD. 5.51 (in) Pressure 5000-10000 (psi) Temp 250-300 (°F):

Double-piston, low-pressure set explored, good sealing.
Highly temperature -resistance and pressure-resistance glue tubing explored, stable, widely used.
Reasonable-design, high-pressure, overturn well-flushing with large emission.
Straight pull release, easy to operate and stable.
According to customer’s requirement to add backflushing.

Secifications:

Casing(in)	Max OD.(in)	Min ID.(in)	Lengrh(in)	Temp(°F)	Pressure(psi)	Thread(in)
4-1/2	3.7	1.77	36.3	250-300	5000-10000	2-3/8 NU
5	4.09	1.97	37.17	250-300	5000-10000	2-3/8 NU
5-1/2	4.49	2.32	38.31	250-300	5000-10000	2-7/8 NU
5-3/4	4.72	2.36	38.82	250-300	5000-10000	2-7/8 EU
6	5.31	2.44	39.02	250-300	5000-10000	2-7/8 EU
6-5/8	5.51	2.44	39.25	250-300	5000-10000	2-7/8 EU
6-5/8	5.67	2.44	40.12	250-300	5000-10000	2-7/8 EU
7	5.83	2.44	41.46	250-300	5000-10000	2-7/8 EU
7	5.98	2.99	42.48	250-300	5000-10000	3-1/2 EU
7-5/8	6.50	2.99	43.94	250-300	5000-10000	3-1/2 EU
8-5/8	7.28	2.99	44.76	250-300	5000-10000	4 EU
9-5/8	8.27	3.23	47.8	250-300	5000-10000	4 EU
9-5/8	8.46	3.46	52.24	250-300	5000-10000	4-1/2 EU
