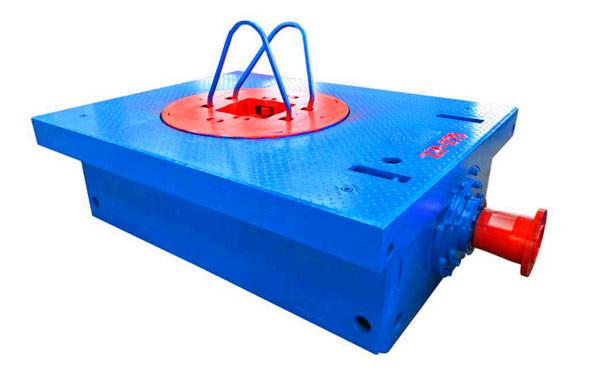

    Rotary Table Dia.Of Through Hole 698.5 Max.Torque KN.M 27.5

    Ask Lasest Price
    Brand Name : ATO
    Payment Terms : L/C, T/T
    Supply Ability : 10 PIECES PER MONTH
    Delivery Time : 10-15 WORK DAYS
    • Product Details
    • Company Profile

    Rotary Table Dia.Of Through Hole 698.5 Max.Torque KN.M 27.5

    Rotary Table Dia.Of Through Hole 698.5 Max.Torque KN.M 27.5


    Descriptions of Rotary Table Dia.Of Through Hole 698.5 Max.Torque KN.M 27.5:


    Built to API Spec 7K, authorized to use the official API monogram

    Smooth operation, heavy-load capability and light in weight

    Sufficient lubrication, reliable sealing, and convenient in installation and maintenance


    Specifications:


    Model parameterZP50ZP135ZP175ZP205CZP275ZP375ZP495
    Dia.of through hole mm180315444.5520.7698.5952.51257.3
    Max.static load KN600135013503150450058509000
    Max.torque KN.m8121422.527.532.3664.4
    Center distance mm591111811181353135313531651
    Max.ratary speed r/min300300300300300300300
    Gear ratio2.943.53.583.623.673.563.96
    Center height mm160270318330330368
    Dimensions(L×W×H)mm930×590×5401705×1070×3781902×1280×5752309×1475×6682417×1680×6862468×1810×7183015×2254×819
    Weight kg5311364373741776773802611260
