High Pressure LA300 Plunger Pump with 300 Ratedbhp at 400 rpm and 10 Plunger Load

Ask Lasest Price
Brand Name :	ATO
Payment Terms :	L/C, T/T
Supply Ability :	10 PIECES PER MONTH
Delivery Time :	10-15 WORK DAYS

Add to Cart

Product Details
Company Profile

High Pressure LA300 Plunger Pump with 300 Ratedbhp at 400 rpm and 10 Plunger Load

LA300 PLUNGER PUMP Ratedbhp at 400 rpm (kw): 300 (224) Maximum discharge pressure:psi(kPa)

Descriptions of LA300 PLUNGER PUMP Ratedbhp at 400 rpm (kw): 300 (224) :

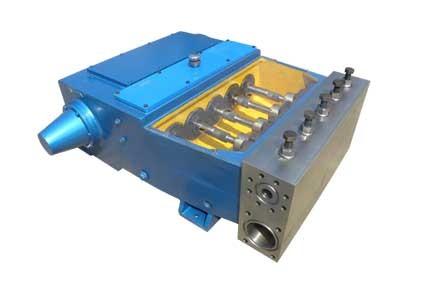

LA300 PLUNGER PUMP is a 300 horsepower 5” stroke horizontal quintuplex single acting plunger pump.Available in two fluid end materials at pump speeds up to 400 RPM and multiple accessory gear reduction unit ratios.

Specifications:

Pump Model	Flange Connections		Dimensions in inches (mm)
	Discharge Connection Sizes	Suction Connection Sizes	A	B	C	D	E	F
300Q-5L	4 (101.6) API 2000 RJ	8 (203.2) ANSI 150 FF	6 1/4	9 1/8	43 1/4	49	68	25 1/8
300Q-5M	3 (76.2) NSD 5000 RJ	6 (152.4) NSD 600 RJ	4 1/2	6 1/2	41 1/2	48 5/8	65	25 7/16
300Q-5H	2 (50.8) ANSI 2500 RJ	6 (152.4) NSD 600 RJ	4 1/2	6 1/2	41 1/2	48 5/8	65 1/8	25 5/8
