Shale Shaker Screen Steel Frame Shaker Screen Mesh: 20-320

Steel Frame Shaker Screen Model

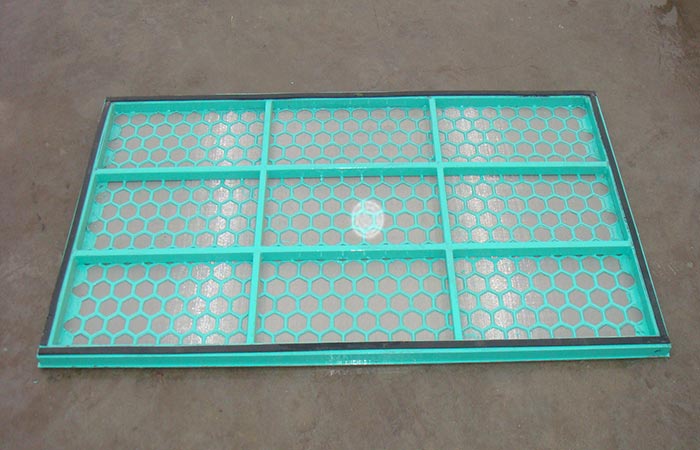

Steel Frame Shaker Screen is used widely in the solid control industry. They are constructed mostly of two or three stainless steel layers bonded tightly to the steel frame.The frame is made up of the high-strength square steel tube or flat steel welded to multi-ribbed construction.These layers are coupled with the frame through metal backing plate or bonded straightly as well.

Spec:

Mesh: 20-320
Dimension: 700/850x1250mm
Weight: 15.5kgs
Screen Material: S.S304
Frame Material: Carbon steel

Steel Frame Shaker Screen Features:

Different layers with different density:To arrange these Steel Frame Shaker Screen layers reasonably and exactly,the screening effect will become better.

High strength frame,multi-ribs and the mesh cloth with moderate tension,from one reliable combination:which can increase screen’s acceptabl flow,the intensity and the lifetime.

The wedge-shaped fastening device:it can make the erection of Steel Frame Shaker Screens more handily and quickly.

The mesh: divided into many independent small units by grids of the backing plate, can prevent rips or tears from spreading overmuch.

Accessary prepared rubber stoppers can be used repair damages. By doing so,the operator can cut down the stop-time and reduce the cost.
