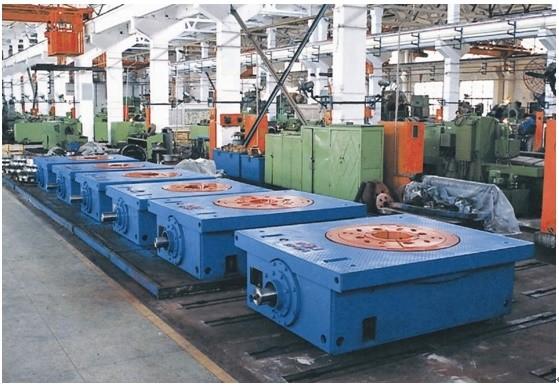

ZP175 API 7K 300r/Min Drilling Rig Rotary Table 2700kN

Product Categories

XIAN ATO INTERNATIONAL CO.,LTD

Trust Seal

Verified Supplier

Credit Check

Supplier Assessment

Contact Now

Add to Cart

ZP175/ZP205/ZP275/ZP375 Rotary Table

Product introduciton

The rotary table conform to API Spec.7K and industry standards of SY/T5531, and API monogram is stamped on it.

Technical Features

The transmission of rotary table adopts spiral bevel gear which enjoys strong bearing capacity, smooth operation and long lifetime.

The shell of rotary table uses cast-weld structure with good rigidity and high precision.

The gears and bearings adopts reliable splash lubrication.The barrel type structure of the input shaft is easy to repair and replace.

Technical Specifications

Model	ZP175	ZP205	ZP275	ZP375	ZP375Z	ZP495	ZP650Y
Dia. of opening, mm(in)	444.5 (17 1/2)	520.7 (20 1/2)	698.5 (27 1/2)	952.5 (37 1/2)	952.5 (37 1/2)	1257.3 (49 1/2)	1536.7 (60 1/2)
Rated static load, kN	2700	3150	4500	5850	7250	9000	11250
Max.working torque,N.m	13729	22555	27459	32362	45000	64400	70000
Table axis to center inner row sprocket teeth ,mm(in)	1118 (44)	1353 (53 1/4)	1353 (53 1/4)	1353 (53 1/4)	1353 (53 1/4)	1651 (65)	----
Gear ratio	3.75	3.22	3.67	3.56	3.62	4.0883	3.97
Max. Speed,r/min	300	300	300	300	300	300	20
Input shaft center height ,mm	260.4	318	330	330	330	368	----
Overall dimension ,mm (L×W×H)	1972× 1372×566	2266× 1475×704	2380× 1475×690	2468× 1920×718	2468× 1810×718	3015× 2254×819	3215× 2635×965
Net weight (including master bushing and excluding chain sprocket),kg	4172	5662	6122	7970	9540	11260	27244

ZP175 API 7K 300r/Min Drilling Rig Rotary Table 2700kN
