QDP 3000 ISO& API 7k Certificate Mud Suction Pump

Ask Lasest Price
Brand Name :	BOMCO
Model Number :	QDP-3000
Certification :	API ISO 9001:2000
Payment Terms :	L/C, T/T
Supply Ability :	2 SET/month
Delivery Time :	2 month

Add to Cart

Product Details
Company Profile

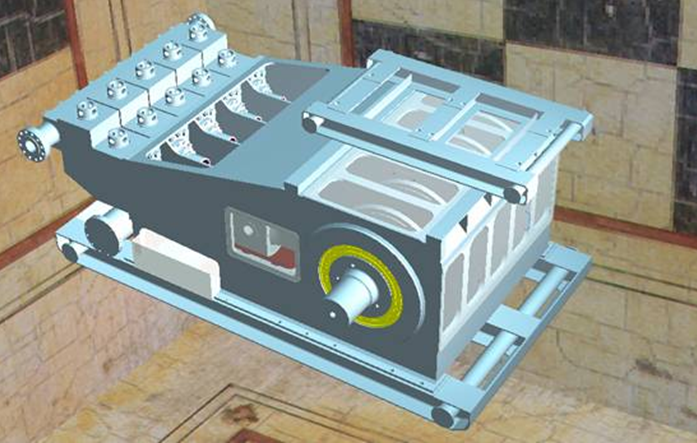

QDP 3000 ISO& API 7k Certificate Mud Suction Pump

QDP-3000 Drilling Mud Pumps and Pump unit with ISO& API 7k certificate for oil&gas drilling rig
Product Explanation: QDP-3000 five Cylinders mud pumps include power end, fluid end, spraying system, lubricating system . QDP-3000 mud pumps include AC motor, gearbox and five Cylinders pump

Product Features:

1. Performance features:
High-power, Large displacement, High pressure.
Displacement and discharge pressure evenly.
Small size and light weight.
2. Structural characters
Drilling mud pump or pump unit adopts modular design, disassembly and moving easily.
The full processing forged crankshafts have light unbalanced weight , running even, multi-point support and high strength characters.
In order to reduces the eccentric wear of the partial cylinder liner, joint bearings are used between the crosshead and extension rod. The crosshead surface is sprayed babbit metal to improve allowable specific pressure and allowable speed.
The new type hydraulic cylinder reduces its weight, improves suction performance and replaces the suction valve easily.
The main pressure parts of fluid end all adopt alloy steel forgings. “No welding ,no casting” design improves their reliability.

Product types and specifications:

3.1 Specifications

Model	QDP-3000
Rated input power	2237 kW(3000 hp)
strokes	300mm
Rated stroke number	117r/min
Cylinder diameter(mm)	φ130	φ140	φ150	φ160	φ170	φ180
The maximum number of stroke( r/min)	166	154	144	135	127	120
The maximum discharge pressure(MPa)	51.9	44.7	39.0	34.2	30.3	27.0
Maximum Displacement	55.08	59.27	63.62	67.86	72.07	76.34
Rated Rod Load	688,338 N
Diameter of suction pipe	305 mm(12 inch)
Discharge tube diameter	130 mm (5-1/8 API 10000psi Flange)
Single Pump Weight	41,018kg
Pump unit weight	57,695 kg
