Horizontal 14 Inch 360mm Solid Bowl Decanter Centrifuge

Ask Lasest Price
Brand Name :	GN
Model Number :	GNLW363C-GP
Certification :	ISO9001
Payment Terms :	L/C, T/T, Western Union
Supply Ability :	2sets/month
Delivery Time :	45days

Add to Cart

Product Details
Company Profile

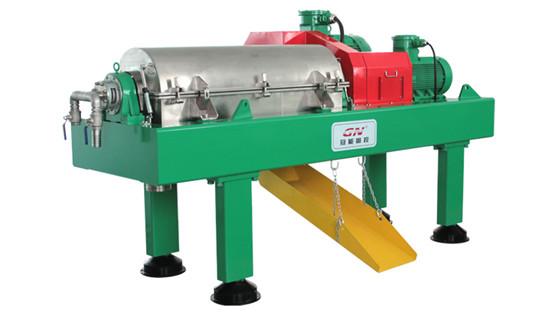

Horizontal 14 Inch 360mm Solid Bowl Decanter Centrifuge

Solid Control Equipment Drilling GN 14 Inch Decanter Centrifuge

14 Inch (360) Decanter Centrifuge – High Speed Centrifuge

DESCRIPTION

The GN 14 inch (360mm) diameter bowl decanter centrifuge which has a length over diameter ratio of 3.5:1 with high speed up to 4000 RPM. The centrifugally casted duplex stainless steel bowl and the tungsten carbide hardened tiles on the solids conveyor maximize the GNLW363 centrifuges operational service life between overhauls. The GNLW363 features replaceable ceramic/tungsten carbide inserts at the feed distribution and solids discharge zones. The unit also has Tungsten Carbide plows to continuously clear the solids discharge area. All bearings fitted to the GNLW363 centrifuge are SKF premium brand bearings for extended service life and reliable operation

GN 14 Inch (360) Decanter Centrifuge Specifications

Model	GNLW363C-GP	GNLW363C-VFD	GNLW363D-FHD	GNLW364E-VFD
Dive Mode	Fixed Speed	VFD	FHD	VFD
Bowl Diameter	14inch(360mm)	14inch(360mm)	14inch(360mm)	14inch(360mm)
Bowl Length	50inch(1271mm)	50inch(1271mm)	50inch(1271mm)	59.5inch(1512mm)
Max Capacity	200GPM(45m³/h)	200GPM(45m³/h)	200GPM(45m³/h)	242GPM(55m³/h)
Typical Capacity	132GPM(30m³/h)	132GPM(30m³/h)	132GPM(30m³/h)	154GPM(35m³/h)
Max Bowl Speed	3900RPM	3900RPM	3900RPM	3900RPM
Typical Bowl Speed	3200RPM	0~3200RPM	0~3200RPM	0~3200RPM
Max G Force	3063G	3063G	3063G	3063G
Typical G Force	2062G	0~2062G	0~2062G	0~2062G
Cut Point	2~5µm	2~5μm	2~5μm	2~5μm
Differential Speed	38RPM	0~45RPM	0~65RPM	0~65RPM
Gearbox Torch	3500 N·M	3500 N·M	3717 N·M	3500 N·M
Gearbox Ratio	57:1	57:1	Hydraulic Gearbox	57:1
Main Motor	37KW(50HP)	37KW(50HP)	45KW(60HP)	37KW(50HP)
Back Drive Motor	11KW(15HP)	11KW(15HP)	N/A	11KW(15HP)
Recommend Pump Motor	7.5KW(11HP)	7.5KW(11HP)	7.5KW(11HP)	7.5KW(11HP)
Remarks	Above Max capacity is for water, the treating capacity would be various as per different material conditions and customer required treating results.
