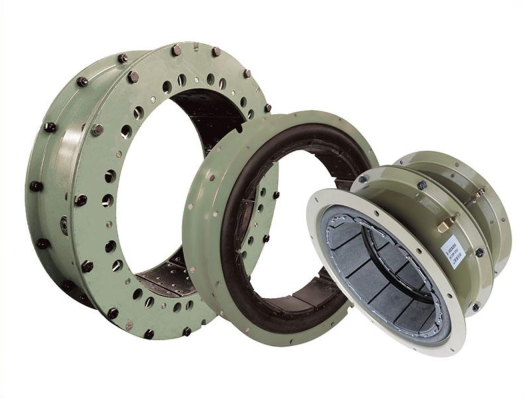

LT1070/200,LT965/305 ventilation type pneumatic clutch for drilling
rig brake
As a kind of friction clutch that uses compressed air as
manipulating power source, pneumatic-tyred clutch is widely used in
such equipment as oil drilling rig and workover rig, and is also an
important part of the drive systems of oil drilling rig and
workover rig.
The characteristics of pneumatic-tyred clutch are as follows: large
transmitted torque, steady joint, easy to install, vibration
absorption, compensation to an extent for the relative radial
offset and relative angular offset of drive and driven shafts,
small inertia of the driven parts, long service life, compact
structure and good sealing.
Furthermore, due to great resistance to deformation of pneumatic
tyres, the service life of such tyres will be shortened when the
operating temperature is over 60°C, and they tend to become fragile
when the temperature is lower than -20°C.

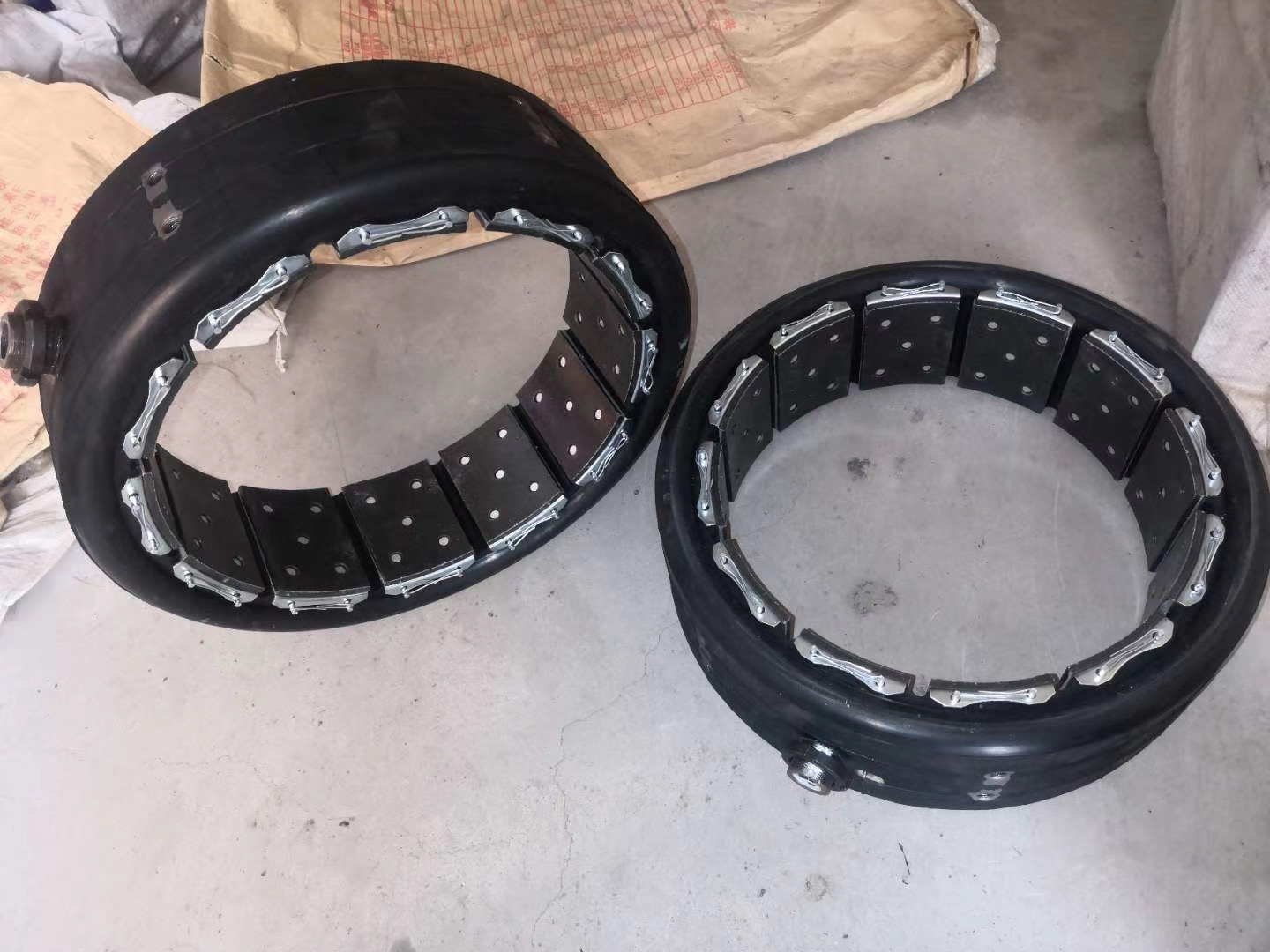

The joint element of a pneumatic clutch is mainly made up of
friction disk and friction block and so on.
Pneumatic-tyred clutch can be divided into common type and
ventilation type in terms of structure.
Specification:
1. Air tube clutch is a friction clutch that uses compressed air as
manipulating power source. Generally, this products used on devices
needs large torque transfer and more rapid transmission, such as
drilling machinery, watercraft, large mechanical press machine,
excavator, ball mill, rubber machinery etc.
2. The air tube clutch has a large transmission torque, combining
smooth, easy to install, can make a little compensation of
deflection to the angular direction and radial direction of main
drive shaft and slave shaft.
Warning :
1.When the rubber air tube is not using.And located indoors or in a
dry, cool, ventilated place.
2.The air tube should be stretched out flat and shall not be piled
up. It is also not allowed to heap pressure heavy objects on the
air tube.
3.The air tube storage areas should be far away from the heat
source.
4.The air tube should not be together with acid, alkali, grease or
organic solvents.
Specification
| Model | OD | ID | Cross section | Friction wheel width | Nozzle nos | Nozzle nner thread | Nozzle height | Connector nos |
| LT200×75 | 288 | 219 | 90 | 73 | 1 | M16×1 | 6 | 4 |
| LT290×100 | 290 | 224 | 93 | 78 | 1 | M12×1.5 | 15 | 6 |
| LT290×148 | 290 | 224 | 133 | 133 | 1 | M20×1.5 | 15 | 6 |
| LT300×100 | 392 | 315 | 98 | 98 | 1 | M20×1.5 | 20 | 6 |
| LT300×150 | 392 | 313 | 133 | 133 | 1 | M20×1.5 | 20 | 6 |
| LT400×125 | 517 | 420 | 125 | 125 | 1 or 2 | M20×1.5 | 20 | 6 |
| LT500×125 | 645 | 521 | 123 | 123 | 1 or 2 | M20×1.5 | 20 | 6 |
| LT600×125 | 750 | 622 | 123 | 123 | 1 | M20×1.5 | 20 | 6 |
| LT700×200 | 800 | 723 | 198 | 198 | 2 | M33×1.3 | 27 | 8 |
| LT700×135 | 814 | 722 | 137 | 137 | 2 | M20×1.5 | 20 | 6 |
| LT800×135 | 915 | 822 | 137 | 137 | 2 | M20×1.5 | 20 | 8 |
| LT1070×200 | 1270 | 1093 | 198 | 198 | 2 | M33×1.3 | 27 | 8 |
| LT1000×250 | 1040 | 880 | 246 | 246 | 1 | M33×1.3 | 27 | 12 |
| IA617 | 615 | 540 | 130 | 130 | 1 | ZG3/8" | 10 | 8 |
Types of pneumatic clutch
LT300/100, LT500/125T, LT600/125T, LT700/135CBC, LT800/135,
LT700/200, LT500/200T, LT500/250T, LT600/250T, LT700/250T,
LT800/250T, LT900/250T, LT1070/200T, LT1170/250T, LT965/305T,
LT1168/305T, LT700/135D
