20VC600 Clutch&Brake For Gas and Oil drilling rig clutch brake

Product Description

At present, in the mining, petroleum, chemical, electric power, metallurgy, shipbuilding and other industries, hundreds of kilowatts or even thousands of kilowatts of electric motors or internal combustion engines are widely used to drive heavy equipment loads.

The VC Clutch is 100% interchangeable with Eaton Airflex or Petroleum Industry Machinery. Standard Sizes: Narrow Sizes: 11.5VC500, 14VC500, 16VC500, 20VC600, 24VC650, 28VC650, 33VC650, 35VC650, 37VC650, 42VC650 Wide Sizes: 14VC1000, 16VC1000, 20VC1000, 24VC1000, 28VC1000, 32VC1000, 38VC1200, 42VC1200, 46VC1200, 52VC1200, 51VC1600, 60VC1600, 66VC1600

Where used: 1.Grinding Mills 2.Marine Propulsion 3.Metal Forming Machinery 4.Oil Field Machinery 5.VC series

Ventilated Construction

Friction shoe backing plates have large air passages through their entire length. This construction coupled with scalloped side plates allows cooling air to flow through the element.In addition, the large exposed inside diameter assures the coolest possible operation. None of the heat is generated deep in the element's internal parts where it can be trapped. The open construction assures rapid heat dissipation.

·

· Description of application effect

VC Clutch: Ventilated pneumatic clutch is a kind of pneumatic clutch with excellent performance developed on the basis of common pneumatic clutch. It has good ventilation and heat dissipation, the pneumatic tire does not bear torque, and it is stable to hang and detach, thus it has higher working performance and service life than the common type.

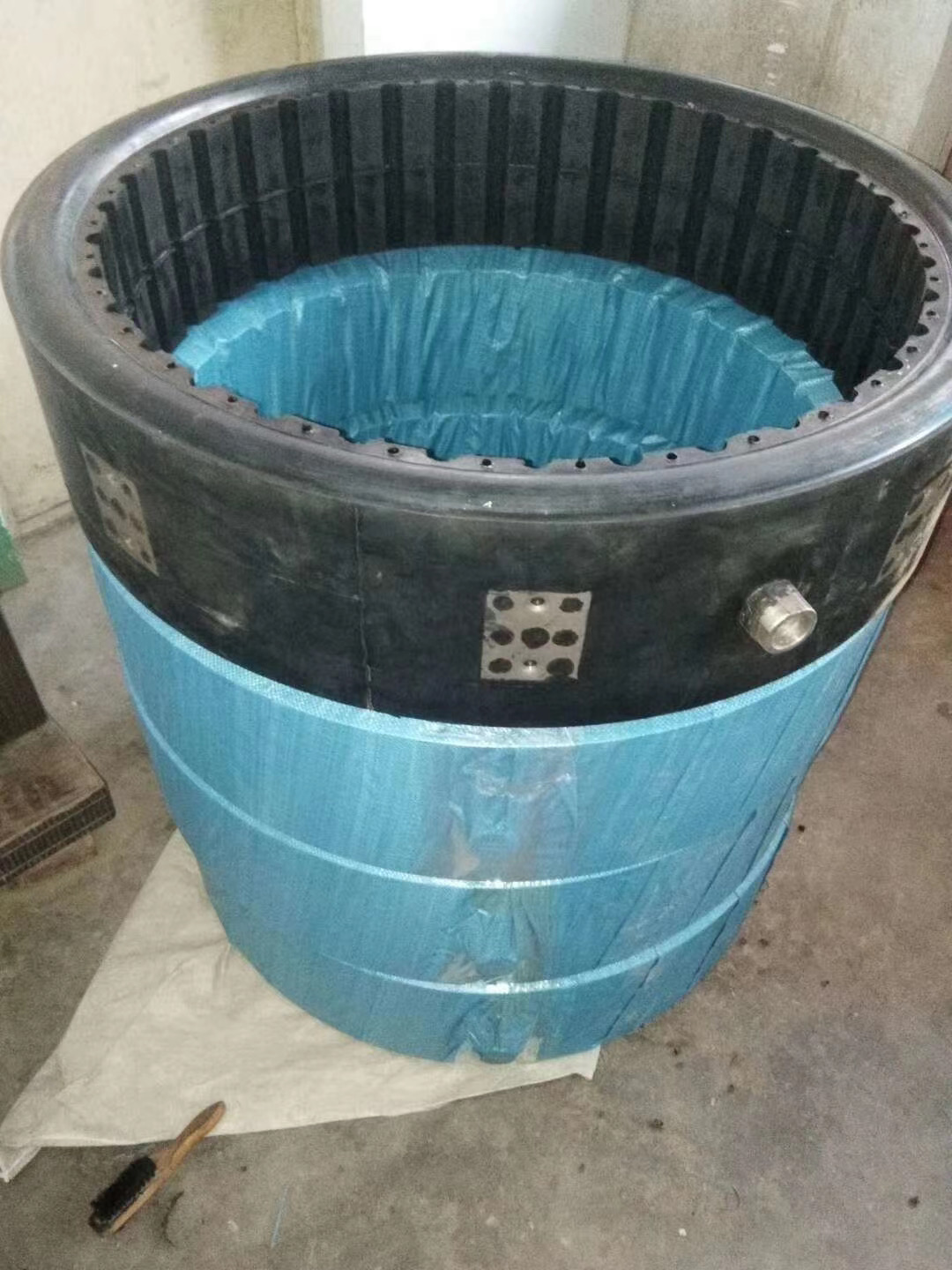

Detailed Images

The type VC element assembly is specifically designed and built for severe clutch or brake applications in which large inertia loads and sustained slippage would normally result in loss of torque and reduced operating life.

VC elements are available in 24 sizes which are identified by the drum diameter in inches on which they constrict and the width in inches of its friction lining. For a given drum diameter it is possible to have two different lining widths. For this reason, the elements are grouped by lining width into a narrow series and a wide series.

Size Information
