Industrial 2500hp 855kN Triplex High Pressure Pump

Ask Lasest Price
Brand Name :	JY
Model Number :	JY-5ZB-2500(1860)
Certification :	ISO9001
Payment Terms :	L/C, T/T, Western Union
Supply Ability :	1set/6 months
Delivery Time :	75 days

Add to Cart

Product Details
Company Profile

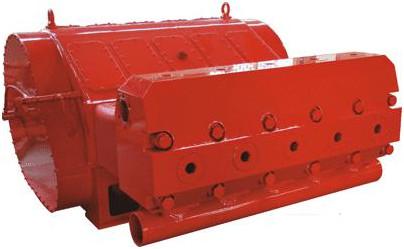

Industrial 2500hp 855kN Triplex High Pressure Pump

Frac Pump Truck/ JY-5ZB-2500(1860) Type Triplex Plunger Pump Maximum Brake Power 2500hp

JY-5ZB-2500(1860)

1. Product description

JY-5ZB-2500 type triplex plunger pump is mainly used in fracturing, well cementing and sand prevention. It has features such as high power, high pressure, high displacement, etc. Fluid end can use various plungers to meet the requirements of customers on pressure and displacement. .

2. Main technical and performance parameters

Maximum brake power :	2500 hp (1866kW)
Maximum load of connecting rod:	855kN(192325 lbf)
Stroke:	203.2mm(8")
Maximum stroke times:	330rpm
Transmission ratio :	6.353:1
Overall dimensions:	2199×1980×1113 mm
Lengthwidthheight	(86.6"×78"×43.8")
Weight:	6760kg(14903 lbs)

Main performance parameters

Working parameter	Stroke times of pump r/min
	115		150		200		250		330
Diameter of plunger	Displacement	Pressure	Displacement	Pressure	Displacement	Pressure	Displacement	Pressure	Displacement	Pressure
in(mm)	L/min(gpm)	MPa(psi)	L/min(gpm)	MPa(psi)	L/min(gpm)	MPa(psi)	L/min(gpm)	MPa(psi)	L/min(gpm)	MPa(psi)
3-3/4"(95.25)	802(212)	120(17420)	1086(287)	92.6(13437)	1446(382)	69.6(10096)	1809(478)	55.6(8068)	2385(630)	42.2(6121)
4"(101.6)	912(241)	105.6(15315)	1234(326)	81.6(11830)	1643(434)	61.2(8886)	2055(543)	49(7102)	2710(716)	37.1(5386)
4-1/2"(114.3)	1154(305)	83.4(12100)	1563(413)	64.3(9338)	2082(550)	48.3(7012)	2604(688)	38.6(5605)	3437(908)	29.2(4247)
5"(127)	1427(377)	67.5(9800)	1930(510)	52.1(7562)	2574(680)	39.1(5671)	3217(850)	31.3(4537)	4247(1122)	23.7(3437)
