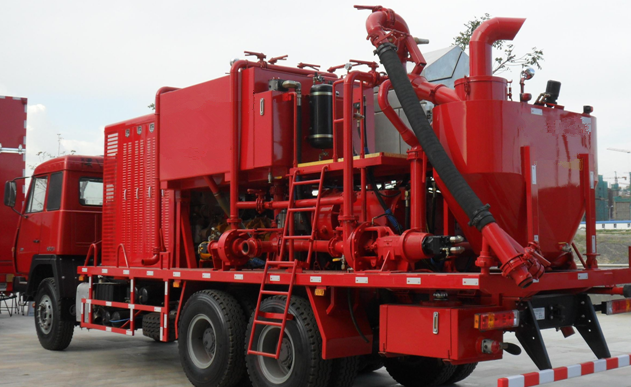

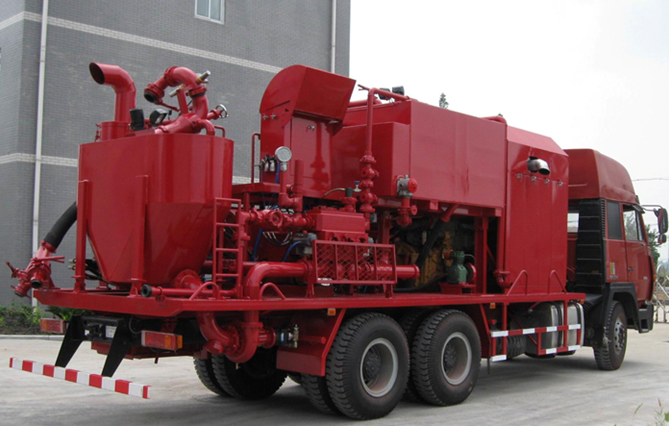

JYSNC 45 - 21 type Oilfield Cement Truck for gas & oil well
First, the model name preparation instructions
■ Product Name JYSNC45-21
Standard name: Cementing Truck
Jane said: cementing truck / cement truck
■ Enterprise from Code Type
Product Model: JYSNC type
JY - Enterprise Code (Jianghan Jia industry)
SNC - cement truck
45 - Maximum pressure 45 MPa
21 - Maximum Displacement 2100 L / MIN
Second, the whole machine performance parameters
| Theoretical maximum working pressure | 45MPa |
| The maximum displacement of theoretical work | 2100L/min |
| Engine Model / power (KW) | CCEC KT19-C525(2100r/min) |
| Total Weight | 20500 |
| The whole movement of Dimensions | 9800(Long )×2500(Wide)×3610(high)(mm) |
Three main parts to the system technical parameters
3.1, containing car chassis
The car designed to carry a variety of chassis for users to choose.
3.1.1. Shaanxi Auto Steyr truck chassis (optional)
Shaanxi Auto: SX1256UR464
Engine Model: WP10.300E40
Power: 300HP
Wheelbase: 4325 +1350
3.2 Engine:
Diesel models: CCEC KT19-C525
Hour Power (Kw): 391 (2100r/min)
3.3, hydraulic mechanical transmission box
Model: BY400
| Gearbox gear | Theoretical displacement m³/min | Theoretical pressure Mpa |
| Ⅰ | 0.28 | 45 |
| Ⅱ | 0.38 | 35 |
| Ⅲ | 0.53 | 25 |
| Ⅳ | 0.75 | 20 |
| Ⅴ | 1.05 | 15 |
| Ⅵ | 1.51 | 10 |
| Ⅶ | 2.1 | 8 |
3.5, the booster pump:
Model: S5 * 6 centrifugal pump
Quantity: 1 sets
Speed: 1900 r/min
Work flow: 3180L/min
Working pressure: 0.07 ~ 0.105Mpa
The impeller diameter: diameter of 259mm
3.6 jet pump
Model: 4 × 3 centrifugal pump
Speed: 2900 r/min
Maximum speed: 3500r/min
Maximum capacity: 1200L/min
Working pressure: 0.85-1.2Mpa
3.7, the cement slurry mixer
A jet of high-energy mixer
The maximum mixing quantity: 2 square meters /min
Cement slurry density: 1 ~ 2.1g/cm ³
3.8, water meter
3.9, the metering tank
Two rooms, each room 2m ³, two room can be measured separately, can
also beroom two interchange.
