Side Door 4 1/16" 10000psi Coiled Tubing BOP

Ask Lasest Price
Brand Name :	SHENKAI
Model Number :	4 1/16"-10000psi
Certification :	API
Payment Terms :	L/C, T/T, Western Union
Supply Ability :	1set/month
Delivery Time :	45 work days

Add to Cart

Product Details
Company Profile

Side Door 4 1/16" 10000psi Coiled Tubing BOP

Drilling BOP Coiled tubing BOP With API Standard Model 4 1/16"-10000psi

Coiled tubing BOP is the key components for well control device, used in coiled tubing operation, effectively prevent the blowout accident, implement safety construction. Is mainly composed of the following two parts:

Coiled tubing operation BOP stack
● The BOP box adopts the side door type, simple and convenient replacing rubber core, even the coiled tubing is in operation, and rubber core can be replaced.
● With double cylinder structure, the use of pressure to seal and reliable sealing, long service life and control low pressure.
● Original created side door lock structure, easy to use, stable performance.

Four Ram coiled tubing BOP
● BOP with full sealing ram, shear ram, slip ram and half seal ram.
● Slip ram using removable structure design, the unique design of tooth to reduce the harm of coiled tubing.
● Switch oil interface for fast plug connector, easy to operate, and it is equipped with protection, safe and reliable.

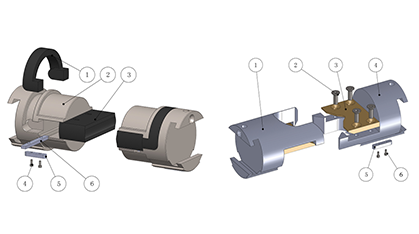

1. Top ram 2.Ram Body 3. Front ram rubber 4. Screw 5. Locating key 6. Feather key	1. Up Shear Ram body 2. Screw 3. Shear blade 4. Down shear ram body 5. Locating key 6. Screw
Whole sealing ram assembly structure	Shear ram assembly strycture

1. Slip body 2. Ram body 3. Locating Pin 4. Locating key 5. Screw	1. Ram body 2. Front rubber 3. Countervanes 4 .Screw 5. Top sealing rubber 6. Locating key 7. Screw 8. Feather key
Slip ram assembly structure	Pipe ram assembly structure

Coiled tubing BOP stackspecification

Model	4 1/16"-10000psi		3 1/16"-10000psi
Main bore	103.2mm(4 1/16" )		77.8mm(3 1/16" )
Nominal working pressure of system	70 MPa(10000psi)
Rated working pressure of operating system	21MPa(3000psi )
Recommended working pressure of operating system	8.4 ~10.5MPa(1200~1500psi)
	As pressure increases inside of well,operating pressure should be increased accordingly
Bottom connection	CB44 union joint	CB34 union joint
Applicable bore	maximum 2 7/8"	maximum 2 "
Dimension	Ф432mm×1197mm	Ф290mm×836mm
Weight	460kg	132kg

Coiled tubing BOP main technical specification

model	4 1/16"-10000psi	3 1/16"-10000psi
main bore	103.2mm(4 1/16" )	77.8mm(3 1/16" )
nominal working pressure of system	70 MPa(10000psi)
rated working pressure of operating system	21MPa(3000psi )
recommended working pressure of operating system	8.4 ~10.5MPa(1200~1500psi)
layouts of rams	From top to bottom : blind, shear, slip,pipe
applicable bore size	maximum 2 7/8"	maximum 2"
dimension (length x width x height)	1498(1691)mm×	1064mm×409mm×860mm
dimension (length x width x height)	648mm×2139mm	1064mm×409mm×860mm
Weight	1993kg	655kg
