Gardner Denver PZ10 PZ11 7500PSI Drilling Rig Mud Pump Parts

Ask Lasest Price
Brand Name :	GD Replacement parts
Model Number :	PZ10/PZ11
Certification :	API
Payment Terms :	L/C, T/T, Western Union
Supply Ability :	2sets/month
Delivery Time :	30days

Add to Cart

Product Details
Company Profile

Gardner Denver PZ10 PZ11 7500PSI Drilling Rig Mud Pump Parts

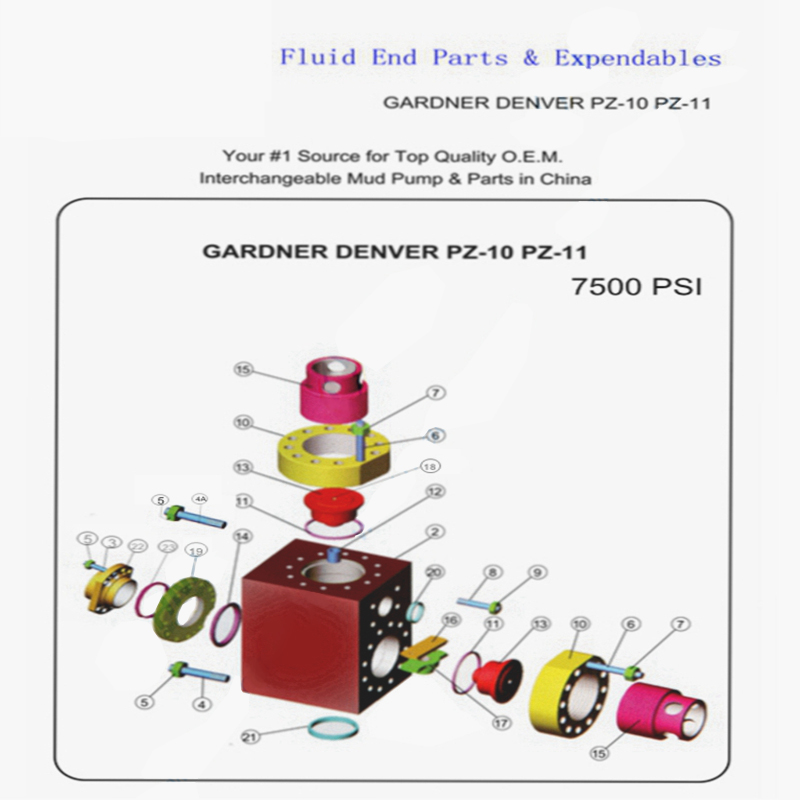

Drilling Rig Mud Pump Parts Gardner Denver PZ10/PZ11 Fluid End Parts 7500PSI

ItemNo.	OEM PARTNo.	ORIGINAL DESCRIPTION	DESCRIPTION & Remark
–	300PZL2039	FLUID CYLINER ASSEMBLY-INCLUDES REFERENCE NUMER 1,30,31,32,33	FLUID END MODULE ..7500PSI , STUDDED (INCL. ITEM 2-9)
2	300PZL029	FLUID CYLINER	FLUID END MODULE 7500PSI , ONLY
3	302PZL110	STUD,LINER CLAMP	STUD,CYLINDER TO LINER CLAMP & FRAME
4A	300PZL110	STUD,FLUID CYLINDER TO FRAME ALIGNMENT (UPPER)	STUD,FLUID CYLINDER TO FRAME ALIGNMENT (UPPER)
4	303PZL110	STUD,FLUID CYLINDER TO FRAME (LOWER)	STUD,FLUID CYLINDER TO FRAME (LOWER)
6,8	301PZL110	STUD,VALVE COVER RETAINER AND DISCHARGE MANIFOLD	STUD,VALVE COVER RETAINER AND DISCHARGE MANIFOLD
5,7,9	50B36	NUT,CYLINDER TO FRAME STUD	NUT,FOR ABOVE STUD 3,4A,4,6,8
10	300PZL387	VALVE COVER RING	THREADED RING,VALVE COVER
11	309PZL316	SEAL	Gasket, Valve Cover
12	302PZL483	VALVE GUIDE(UPPER)	VALVE GUIDE(UPPER)
13	302PZL147	VALVE COVER(UPPER)	VALVE COVER(UPPER)
14	303PZL316	SEAL	WEAR PLATE GASKET
15	300PZL587	COVER LOCK	COVER LOCK, VALVE
16	301PZL205	VALVE GUIDE RETAINER	VALVE GUIDE RETAINER
17	303PZL483	VALVE GUIDE (LOWER)	VALVE GUIDE (LOWER)
18	15P27	EYE BOLT	EYE BOLT
19	301PZL234	WEAR RING	WEAR PLATE
20	302PZL316	SEAL	GASKET, DISCHARGE MANIFOLD TO CYLINDER
21	25BE41	GASKET	GASKET, SUCTION MANIFOLD TO CYLINDER
22	300PZL455	CLAMP,LINER	LINER CLAMP
23	316PZL316301PZL316	GASKET,LINER	LINER GASKET
