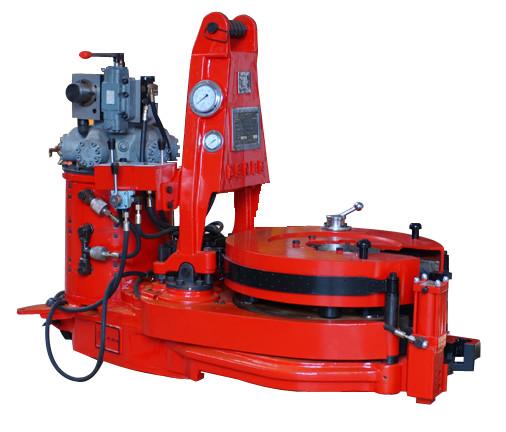

Oilfield ZQ203-125II 40rpm 127mm Tubing Power Tong

Tubing Power Tong/Drill Pipe Power Tong Model ZQ203-125II API 7K

The type of drill pipe power tong marked with II means the the power tong is supplied with DS suspension device. The hanging height of the power tong can be adjusted by operating the manual control valve in the suspension device. It features the effect of safe, labor-saving, convenient, and reliable. ZQ203-125II drill pipe power tong is built with automatic door, and can realize combinated control on the clamping of the lower tong, the open and close of the door, and the moving of the tong body.

Model			ZQ127-25 Ⅱ	ZQ162-50 Ⅱ	ZQ203-100 Ⅱ	ZQ203-125 Ⅱ
Size range	Drill pipe	mm	65-127	85-162	127-203	127-203
	Drill pipe	in	2³/₈〞～3¹/₂〞	2³/₈〞～5〞	3¹/₂〞～8〞	3¹/₂〞～8〞
	Casing	mm	65-127	114.3～153.7
	Casing	in	3¹/₂〞	4¹/₂〞～5¹/₂〞
	Tubing	mm	65-127	138-156
	Tubing	in	3¹/₂〞	3¹/₂〞～4¹/₂〞
Max.torque		kNm	25	50	100	125
Max.torque		ft.lbf	18440	36880	73750	92200
Speed(High gear)		rpm	65	60	40	40
Speed(Low gear)		rpm	10.5	4.1	2.7	2.7
Air pressure		MPa	0.5–0.9
Air pressure		psi	72–130
Pressure rating		MPa	14	16	16.6	20.7
Pressure rating		psi	2030	2320	2400	3000
Flow rating		L/min	120	120	114	114
Flow rating		gpm	31.7	31.7	30	30
Shifting distance		mm	1000	1000	1500	1500
Shifting distance		in	39.4	39.4	59	59
Lifting distance		mm	0–620	0–440	0–430	0–430
Lifting distance		in	0–24.4	0–17.3	0–17	0–17
Size		mm	1110×735×900	1570×880×1370	1760×1000×1630	1760×1080×1630
Size		in	40×31×35.4	62×31×54	69×39×64	69×42.5×64
Weight		kg	700	1700	2500	2750
Weight		lb	1540	3748	5510	6063
