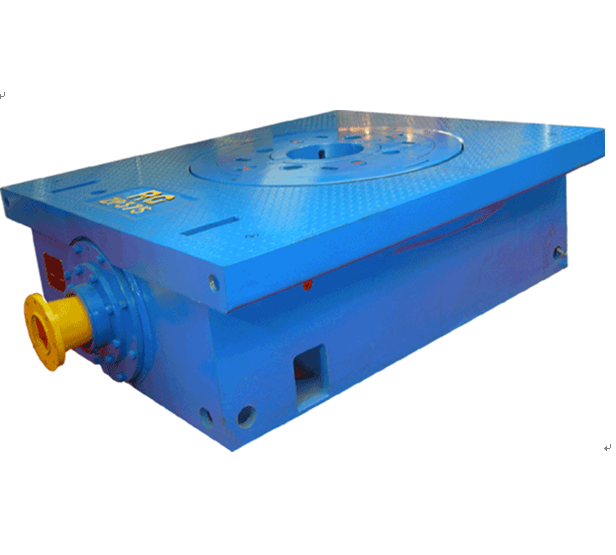

RG Drilling Rig Rotary Table ZP205 API Spec. 7K&ISO Standard
for oil&gas drilling rig
Product Introduction
1. The design and manufacture of rotary table conform to API 7K
specification and SY/T 5080 and other relevant standards.
2. Smooth operation, strong carrying capacity and light
weight.Reliable locking, easy installation and maintenance.
Product Parameters
| Model | ZP70 | ZP125 | ZP175 | ZP205 | ZP275 | ZP375 | ZP495 |
| Hole Dia. (mm) | 180 | 305 | 444.5 | 520.7 | 698.5 | 952.5 | 1257.3 |
| Max static Load (kN) | 600 | 1350 | 1350 | 3150 | 4500 | 5850 | 7250 |
| Max working torque (kN.m) | 8 | 12 | 13.7 | 22.6 | 27.5 | 32.4 | 36.3 |
| max speed (r/min) | 300 |
| gear ratio | 2.94 | 3.5 | 3.58 | 3.62 | 3.67 | 3.56 | 3.96 |
| central distance (mm) | 591 | 1118 | 1118 | 1353 | 1353 | 1353 | 1651 |
| central height | -- | 160 | 270 | 318 | 330 | 330 | 368 |
ATO Advantages:
1 Customize products with
different repuqirements for customers
2 All factory are designated by Sinopec&CNPC
3 Raw materials are strictly tested,confirm to API standards
4 Strong professional team, find the most suitable products for
customers
5 Customer -Focused, to provice reliable and efficient one-stop
worry-free service
6 High quality pumps parts supplier
7 Assurance pf reliable source
8 Flexible solutions for all your questions
9 safe and convenient logistics channel
10 perfect after-sale tracking service team, provice one to one
service to customers in time
Why choose ATO
?
1 Strict quality control
2 Excellent cooperative factories that must be supply products to
original factory
3 According to API standard, all of manufacturer have API license
4 Advantage price with high quality product
5 Provide cost-effective Customization product
