BZC400CJHW 400 meter 6X6 Truck mounted Mobile water well drilling
rig with COMMINS brand diesel engine 112KW
Product description
BZC400CJHW Mobile water well drilling rig
1. with HOWO brand chassis 6X4 or 6X6 form
2. Drilling power: COMMINS brand diesel engine 112KW
3. Drill different layers, such as soil layer, clay layer, rock
layer etc.
4. Drilling with mud pump, air compressor+DHT hammer, Air foam etc.
5. Easy to operate and maintainance.

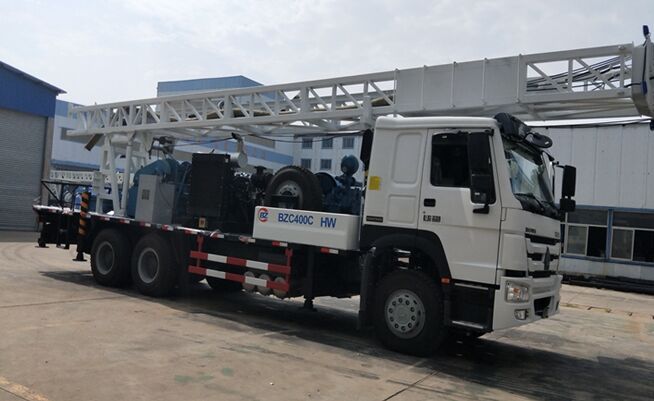

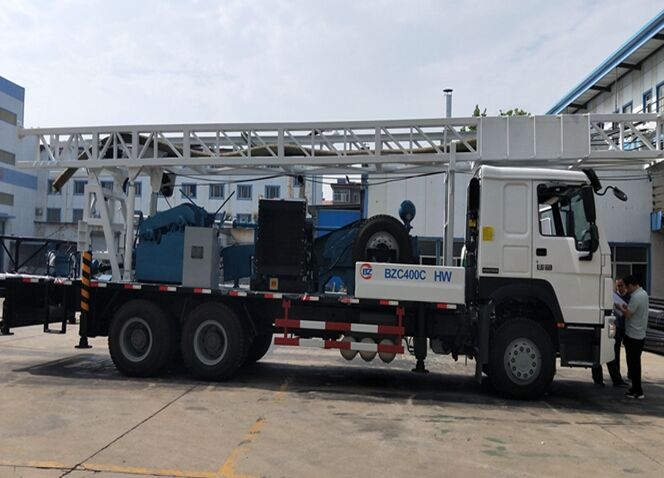

BZC400CJHW mobile water well drilling rig
1. The drilling rig has four hydraulic jacks; they can act together or separately to
make balance and the rear jack can stretch out which keep the
balance.With hydraulic tower, easy to operate.
2.Double mechanical winches,mud pump, rotary table,mast, kelly are
installed on the chassis, removable more convenient.
3.The main parts of drilling machine such as The winch, turntable,gearbox,tower,chassis are made by our
factory;
the performance are stability.
4.The drilling rig can be used in People and livestock drinking water ,farmland
irrigation, water source development,drilling water
wells,industrial production water supply drilling geothermal wells
,road construction pile foundation ,geological explorations etc.
5.The drilling rig easy operation, easy to repair,high efficient
and is the good choice of customer.
| Parameter |
| Drill depth | 400 (m) |
| Drill rod | 89mm (3-1/2”) |
| Winch capacity | Main hook lifting capacity (kN) | 240 |
| Auxiliary hook lifting capacity(kN) | 160 |
| Max- rope speed of main winch(m/min) | 60 |
| Max- rope speed of Auxiliary winch(m/min) | 60 |
| Rotary table | Inner diameter (mm) | 500 |
| Rotate speed (rpm) | 96；76；44；24；12 |
| Max-torque(kN.m) | 25 |
| Mast | Height(mm) | 11900 |
| Rated load(t) | 28t |
| Drill tool | Kelly(mm) | 108*108*7500 |
| Drill rod(mm) | 89*5500 |
| mud pump | Displacement 850L/min | Max Pressure 2Mpa |
| Displacement 300L/min | Max Pressure 3Mpa |
| Diesel engine | Cummins 6BT5.9-C150 | 112KW/2200rpm |
| Transportation size | L*W*H (mm) | 12500*2500*4000 |
