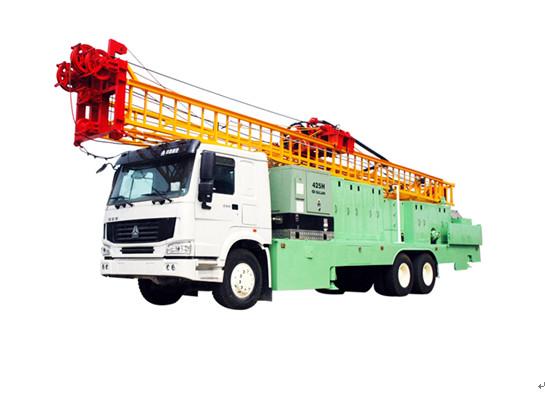

RG SYC36 Truck-mounted hydraulic water well drilling rig max
drilling depth 800 meter
The drilling machine can adopt air drilling hammer drilling, mud
drilling and other construction techniques, which have the
advantages of fast drilling speed and good drilling effect.
Product Introduction
1. RG SYC series water well drilling machine is a vehicle-mounted
hydraulic water well drilling machine, which adopts the national V
vehicle chassis with strong cross-country performance, integrates
the lifting, rotating and circulating systems on the auxiliary
frame, and has good maneuverability.It is suitable for drilling
Wells in plain, desert, swamp and gobi area.
2. The drilling machine can adopt air drilling hammer drilling, mud
drilling and other construction techniques, which have the
advantages of fast drilling speed and good drilling effect.
3. Can be listed on the road according to the national
announcement.
Product Parameters
| model | RG SYC15 | RG SYC25 | RG SYC36 | RG SYC49 | RG SYC60 |
| max drilling depth (m) | 300 | 500 | 800 | 1000 | 1500 |
| max drill hole dia.(mm) | 450 | 650 |
| DP dia.(mm) | 89,102,114 |
| max lifting force (kN) | 150 | 250 | 360 | 490 | 600 |
| max pushing force (kN) | 60 | 80 | 120 | 40 | 80 |
| max lifting speed (m/s) | 26 | 30 | 36 | 36 | 36 |
| power swivel max torque (kN.m) | 7.5 | 10 | 13 | 10 | 15 |
| power swivel max speed (r/min) | 170 | 160 | 160 | 170 | 160 |
| power head dia.(mm) | 76 |
