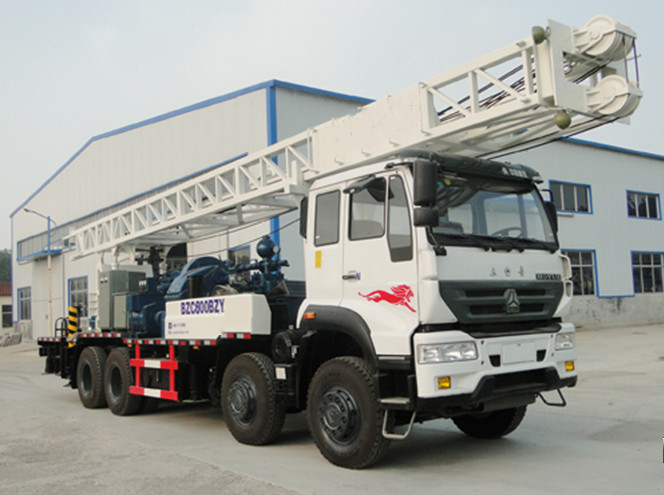

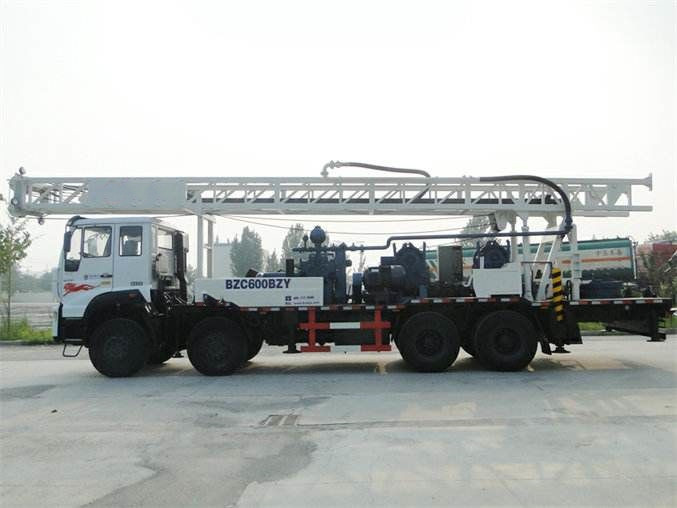

BZC600BZY Truck mounted rotary table drilling rig for 600 Meter
water well and Geological drilling well
Main features:
1. BZC600BZY truck mounted
drilling rig is a rotary table drilling rig.
2. The truck chassis adopts the special crane chassis of brand SINO
TRUCK and the main drive system, the transfer case, gearbox,
double-winch unit, mud pump, turntable, drilling tower, feed
mechanism are set up on the chassis.
3. This rig is a rotary drilling rig with directional circulation.
It is equipped with mud pump which adopts the slurry as the washing
fluid and can drill in soil, clay, sand and rock if it is equipped
with suitable drilling bit.
4. The power of truck engine transfer to PTO, and then drive
drilling rig.
5.The main drive of rig is mechanical and the four landing legs and
drilling tower are hydraulic controlled. Transfer case and mud pump
clutch system are air operated.
6. According to client’s requirement, the BZC600BZY can carry out
down-the-hole hammer drilling with Air Compressor.
7. It is high efficiency because of having a larger torque of the
turntable and is mainly used for water well in industry and
agriculture, national defense building foundation, geological
exploration, and geothermic well and other foundation working, it
is popular at home and abroad.
| Technical parameter |
| Drilling depth(M) | 600 |
| Drilling diameter(mm) | 200-500 |
| Speed of turntable(r/min) | 117；102；60；38；22；13；16(reverse) |
| Torque of turntable(KN.m) | 5.4----50 |
| Single rope lifting capacity of main windlass(KN) | 50 |
| Maximum lifting capacity of main windlass(KN) | 300 |
| Single rope lifting capacity of assistant windlass(KN) | 60 |
| Single rope lifting capacity of assistant windlass(KN) | 240 |
| The lifting capacity of hook(KN) | 300 |
| Bearing capacity of drilling tower (KN) | 360 |
| The height of drilling tower (mm) | 12500 |
| Drill pipe | Kelly bar(mm) | 108×108×7500 |
| Assistant pipe (mm) | .Ф89×10×6000 |
WB3NB-130 Mud pump | Liner Diameter (mm) | 100-140 |
| Stroke of piston (mm) | 160 |
| Theoretical flow (L / S) | 8.4 10.3 12.2 14.3 16.6 |
| Rated pressure (Mpa) | 10 8 7 6 5 |
| Diameter of suction tube | 152mm |
| Diameter of discharge pipe | 65mm |
| Input power kW(HP) | 95 (130) |
Truck chassis | Drive form | 8×4 |
Engine | Model | YC6A260-33YC water -cooled four strok diesel engine |
| Rated power(KW) | 191 |
| Speed (r/min) | 2300 |
| Size (L*W*H)(mm) | 11510*2480*2800 |
| The highest speed(Km/h) | 75 |
| Weight (kg) | 25500 |
| Transport size(L*W*H)(mm) | 12550×2500×4150 |
