Dual Mud Pump Sample 300M Offshore Oil Drilling Rig

Ask Lasest Price
Brand Name :	HY
Model Number :	HY-C300
Certification :	ISO90001
Payment Terms :	L/C, T/T
Supply Ability :	3 set / year
Delivery Time :	10 month

Add to Cart

Product Details
Company Profile

Dual Mud Pump Sample 300M Offshore Oil Drilling Rig

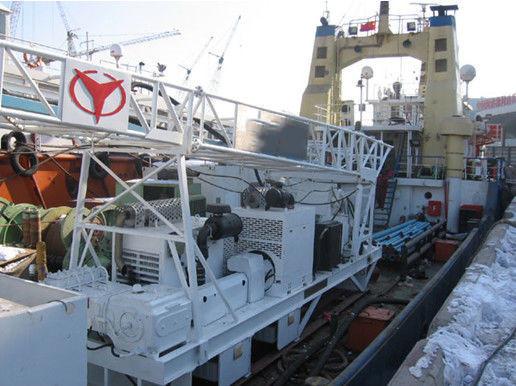

HY-C300 Offshore Sample Drill for offshore oil drilling rig with 300meters

HY-C300 Offshore Sample Drill

Product Description:HY-C300 sea floor sample drill is capable of obtaining sample under the seafloor down to 300meters (including sea depth 100 meters).

Performance:

Powerful rotary table
Retractable for easy access of drilling pipes
Dual winch for hoisting and pulling down with real time indication of hoisting force
Winch for sampling, adjustable hoisting force up to 2 ton
All winches are driven by hydraulic system
High capability mud pump with changeable output displacement
“A” shape mast
Dual engine, dual mud pump
Constant tension of winch cable with auto controlling system to compensate the change of tension caused by sea wave.

Specification:

Description	Specs
Drilling method	Mud flush drilling
Max. drilling depth	300m(including water depth.)
Drilling tools: Drill bit size Drill pipe size Inner diameter through drill tools	7 inch 89/114mm Ф70mm
Rotary table Max torque	10000 Nm
Hoisting&Pulling down Structure	Heavy duty chain and sprocket
Main and auxiliary winch: Hoisting force	w/ cable tension auto compensation system 15 ton
Sampling winch Hoisting force	0-2 ton (constant variable)
Mast: Height of mast	Approximately 15m (could be disassembled into two parts)
Mud pump	Triplex horizontal single acting recipocating piston&liner pump
Overall dimensions:	Mast up: 11600X2200X15570mm Mast down: 14700X2200X4020mm
Weight:	Approximately 20ton (w/o drilling tools or mud)

Specifications are subject to change without notice.
