HY-W series excavator drill attachment can be mounted in different
models of excavators after modifications
EXCAVATOR DRILL
Product Description:HY-W series excavator drill
attachment can be mounted in different models of excavators after
modifications. Excavator drill attachment is complete exchangeable with the
bucket. Excavator drill can be used in mine, road constructions,
slope founding projects, and other construction projects which need
shot hole equipment.
Performance

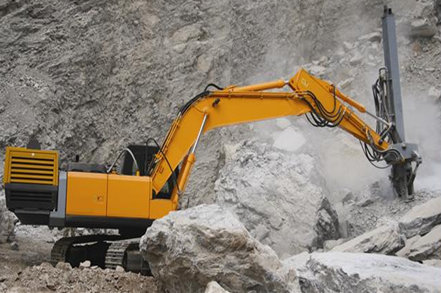

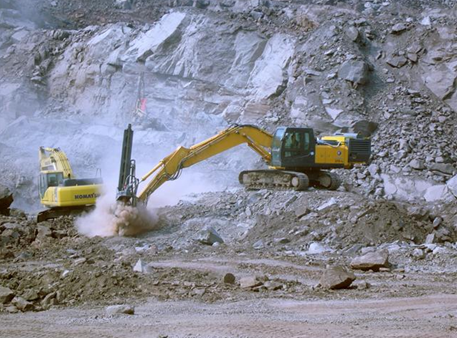

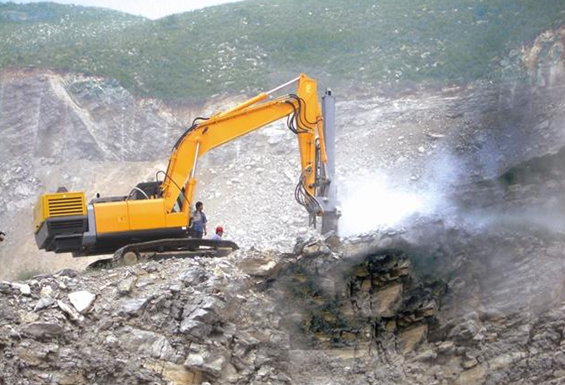

Mounted on excavator, drill can be done in any place within the
radius of excavator arm, without moving the excavator. So the
non-drilling time has been greatly reduced. With the movement of
the excavator arm, the directional drill can be realized in
different angles or even horizontal.
The automatic controlling system integrated the hydraulic system
and electrical system, has reduced the labor of man power greatly.
In soft working condition, air flushing driving the rotation of
drill bits will have higher economy. In hard rocks, high air
pressure air hammer will be used for higher efficiency.
Air compressor can be mounted on the excavator or mounted on the
trailer.
With human-oriented design, the driller can only use the handle
inside the cabin to complete the impacting, cutting, feeding,
hoisting, and speed adjustment of drilling. It is idea working
conditions of driller.
Specification
HY-W20 EXCAVATOR DRILL
Excavator capability: 12-15 ton Drilling method: Air drilling Cutting method: Air flush, air hammer Max. Drilling depth: 50m Diameter range: 80-150mm Max. torque: 2400N.m Max. Speed: 220 r/min Mast oscillation angle: ±20° | HY-W30 EXCAVATOR DRIL
Excavator capability: 20-30 ton Drilling method: Air drilling Cutting method: Air flush, air hammer Max. Drilling depth: 80m Diameter range: 90-171mm Max. torque: 4000N.m Max. Speed: 280 r/min Mast oscillation angle: ±15° |
|
- Specifications are subject to change without notice.
|
