Nominal Drilling Depth 500M - 1000m Truck Drilling Machine

Ask Lasest Price
Brand Name :	Jereh
Model Number :	ZJ10Z(T)
Certification :	API
Payment Terms :	L/C, T/T, Western Union
Supply Ability :	1set/6months
Delivery Time :	8 months

Add to Cart

Product Details
Company Profile

Nominal Drilling Depth 500M - 1000m Truck Drilling Machine

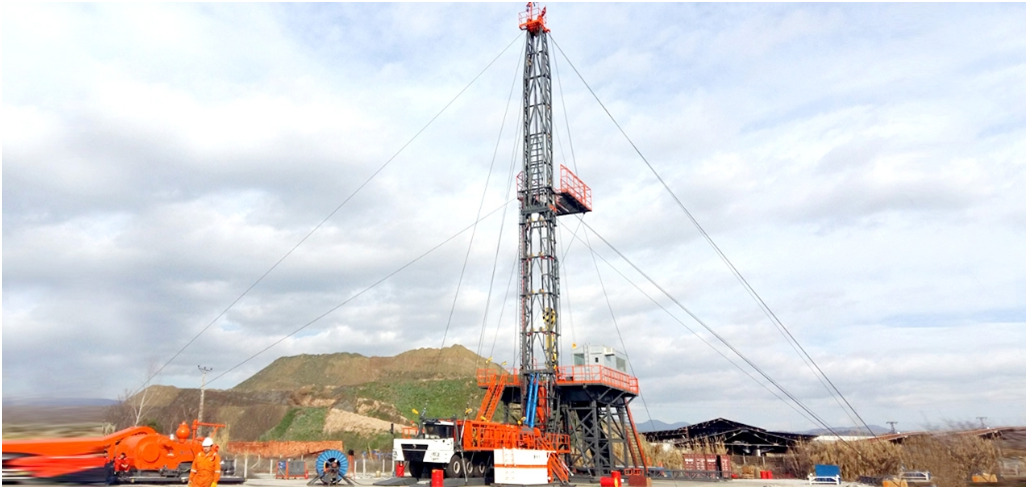

Truck Mounted Drilling Rig Model ZJ10Z(T) Nominal Drilling Depth 500-1000m

Description

Jereh truck/trailer mounted drilling rig is mechanically and hydraulically driven. The power system, drawworks, mast, travelling system and transmission mechanism of the drilling rig are mounted on the self-propelled chassis, which improves the moving efficiency greatly. Now, Jereh truck mounted drilling rig series cover the drilling depth from 1000m to 4000m and maximum static load from 900kN to 2250kN, featuring high operation load, reliable performance, excellent off-road performance, convenient movement and low operation/moving cost, and suitable for drilling operations in shallow and middle deep wells. Besides, drilling rigs for arctic, desert and highland applications are available.

Features

Conform to API Q1, 4F, 7K and 8C Specification and API monogrammed.
The technical parameters and overall design conform to GB/T 23505 Petroleum Drilling and Workover Rigs, suitable for middle & shallow well drilling and workover operations.
Conduct strength analysis for the mast and substructure based on SAFI software.
Modular design achieves fast move and transportation.
Adopt mechanical transmission to enable simple operation and easy maintenance.
Special off-road chassis extends service life.

Specifications

Model		ZJ10Z(T)	ZJ15Z(T)	ZJ20Z(T)	ZJ30CZ(T)	ZJ40CZ(T)
Max. Hook Load kN(lb)		600 (130000)	900 (200000)	1350 (300000)	1800 (400000)	2250 (500000)
Nominal Drilling Depth m(ft)	114 mm (4 1/2") Drill Pipe	500-1000 (1640-3280)	800-1500 (2620-4920)	1200-2000 (3940-6560)	1600-3000 (5250-9840)	2500-4000 (8200-13100)
Nominal Drilling Depth m(ft)	127 mm (5") Drill Pipe	500-800 (1640-2620)	700-1400 (2300-4590)	1100-1800 (3610-5910)	1500-2500 (4920-8200)	2000-3200 (6560-10500)
Engine Power kW(hp)		224(300)	280(375)	470(630)	2×403(2×540)	2×470(2×630)
Drawworks Rated Power kW(hp)		185(250)	260(350)	485(650)	560(750)	745(1000)
Main Brake		Belt Brake	Belt Brake or Disc Brake	Belt Brake or Disc Brake	Belt Brake or Disc Brake	Belt Brake or Disc Brake
Lines of Travelling System		6	8	8	10	10
Drilling Line Dia. mm(in)		22(7/8)	26(1)	29(1 1/8)	32(1 1/4)	32(1 1/4)
Travelling System Sheave OD mm(in)		610(24)	760(30)	760(30)	915(36)	915(36)
Mast Height m(ft)		22(72)	32(105)	35(115)	38(125)	38(125)
Substructure Height m(ft)		3(10)	3(10)	4.5(15)	6(20)	6.7(22)
Substructure Clearance Height m(ft)		2(6.5)	2(6.5)	3.5(11.5)	4.9(16)	5.5(18)
Rotary Table Opening mm(in)		444.5(17 1/2)	444.5(17 1/2)	520.7(20 1/2)	698.5(27 1/2)	698.5(27 1/2)
Mud Pump Qty.		1	1	2	2	2
Mud Pump Rated Power kW(hp)		373(500)	373(500)	597(800)	597(800)	746(1000)
Standpipe Dia. mm(in)		64(2 1/2)	64(2 1/2)	76(3)	76(3)	76(3)
Standpipe Working Pressure MPa(psi)		25(3600)	25(3600)	35(5000)	35(5000)	35(5000)
Self-propelled Chassis		8×4	8×8 or 10×8	12×8	14×8	14×10
Trailer		-	3-axle	4-axle	5-axle	5-axle
Remarks		C-Dual-engine gear compound transmission; Z-Self-propelled Chassis; T-Trailer
