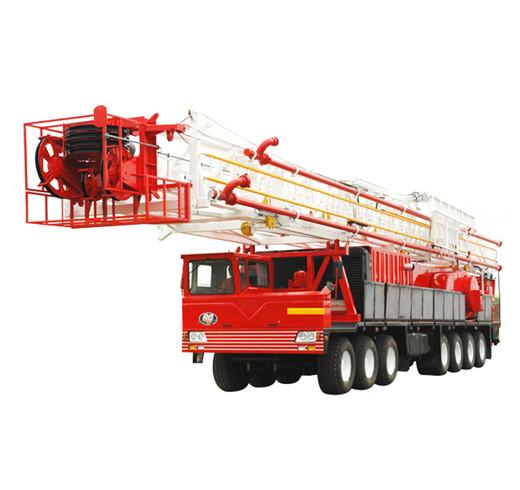

RG ZJ30/1800Z Truck-mounted drilling rig max drilling depth 3000 meter with API
standard
Product Introduction
1. The Truck-mounted drilling rig is driven by diesel engine with
reasonable power matching, high transmission efficiency, high
reliability, compact structure, high degree of assembly and small
footprint.
2. Self-made heavy-duty chassis, equipped with hydraulic power
steering system, with good mobility, off-road and transverse
stability.
3. The main brake adopts band brake or hydraulic disc brake, and
the auxiliary brake adopts pneumatic push-disc brake, pneumatic
clamp disc brake or water brake.
4. The mast set with two sections at the front opening, tilting
forward or standing upright, lifting and stretching of the
hydraulic cylinder, and is equipped with wind guy lline and
anti-overturn guyline.
5. The rotary table drive system can realize the positive rotation,
reverse rotation, suspension and disconnection of the rotary table,
and is equipped with the reverse torque release device to ensure
the safe release of the rotary table drilling string torque.
6. The drilling floor adopts the telescopic or spiral lifting
structure, the floating platforms on both sides can be turned over,
and the sledding can be hoisted and transported.Table height, size,
layout can be customized.
7. Perfect peripheral equipment of solid control, well control,
high-pressure manifold, mud pump unit, oil and water tank, etc.It
can be matched arbitrarily or customized as required.
Product Parameters
| Model | ZJ30/1800Z |
| Max Hook Load (kN) | (*1700)1800 |
| Nominal Drilling Depth(114mm)m | 1600～3000 |
| Drawworks Power (kW) | 403×2 |
| Lines | 8,10 |
| Wire line Dia (mm) | 32 |
| Mast height (m) | 36,38,41 |
| Max hook speed (m/s) | 1.5 |
| Substructure height (m) | 6,7,7.5 |
| RT Hole Dia.(mm) | 520.7,698.5 |
| Main Brake | band and disc brake |
| auxiliary brake | 324WCB |
| Carrier Model | XD70/14×8 |
| Min ground clearance mm | 311 |
| Min diameter of turning circle m | 41 |
| emission standard | V |
