SERVA QPE 1600 Quintuplex Plunger Pump
The QPE 1600 is a reciprocating, horizontal single-acting,
quintuplex plunger pump for continuous well service, which is rated
at 1600 brake hp input maximum.
The pump is good at cementing, acidizing, fracturing, and other
conventional services, especially for long-time coiled tubing
service.
The North American market is available in a dual-pump arrangement
with a single power of up to 3,200 HP and a maximum working
pressure of 20,000 PSI.
| Specifications | |
| Rated Maximum Brake Horsepower | 1,600 bhp (1,192 Kw) |
| Maximum Rod Load | 146,000 lbf (65,700 kg) |
| Stroke Length | 8”(203.2 mm) |
| Gear Ratio | 6.133:1 |
| Length (Approximate) | 1” (1 mm) |
| Width (Approximate) | 1” (1 mm) |
| Height (Approximate) | 1” (1 mm) |
| Pump Weight | 4,000 Kg (8,900 lbs) |
Major Features:
Adopting FACET™ technology and UltraLast™ stainless steel fluid
cylinder to improve service life of fluid cylinder by 400%.
Imported packing and homemade top-performance packing are
available, which can be interchanged with packing of the same
specification in the market.
Wearing parts can be interchanged with similar mainstream products.
Suction and discharge connections can be custom designed as
required by customers.
Gear reduction box capable of rotating in 12 different angles is
available.
Crosshead and push rod are designed to prevent mud from entering
into the power end.

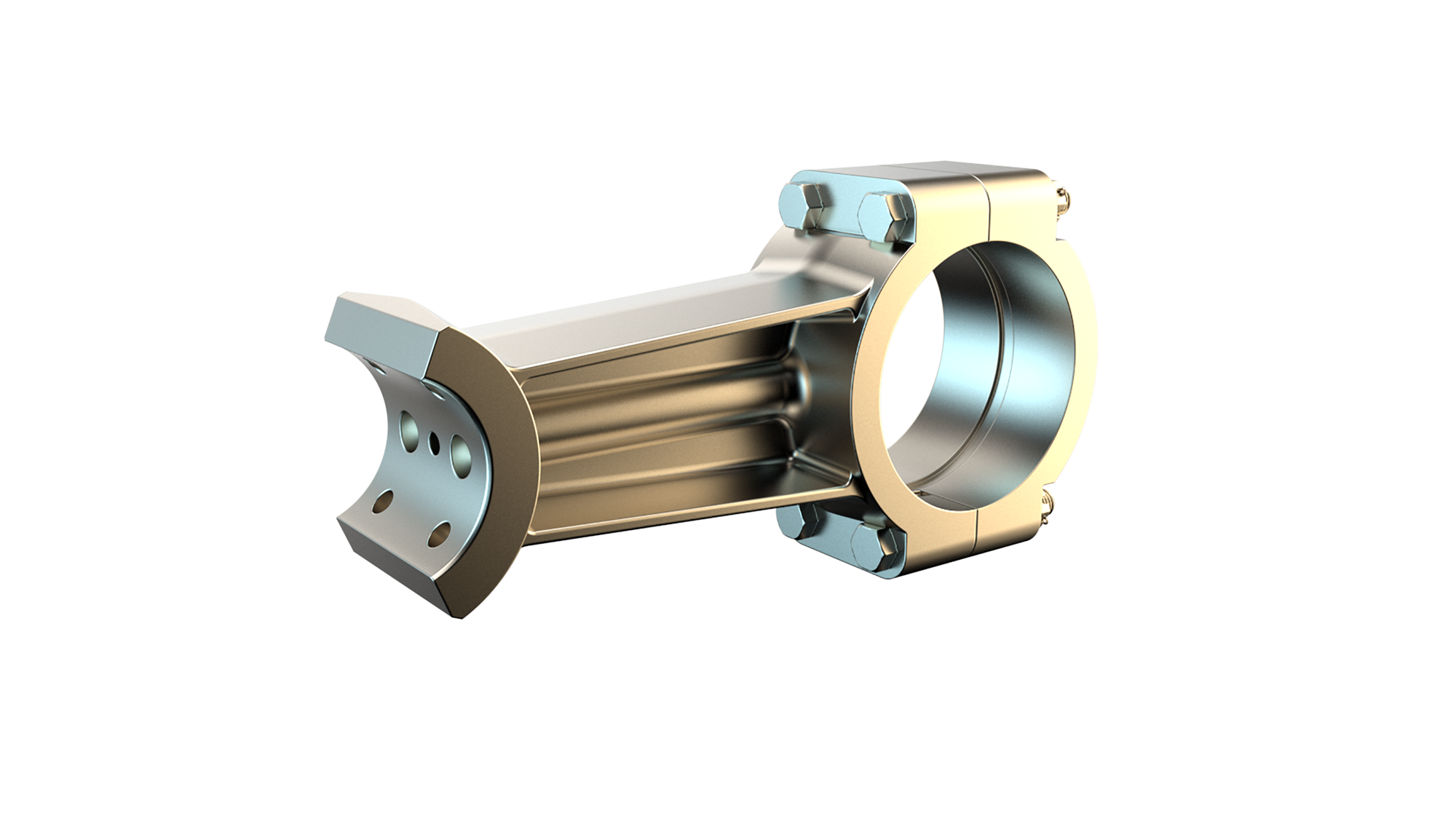

Strength of integrally forged connecting rod is 50% higher than
that of conventional connecting rod.
The improved design of crosshead increases the contact area of the
joint bearing by 38% and greatly improves the service life of the
crosshead.
