SERVA TPD/TPE 600 High Pressure Triplex Pump for cementing and acidizing

Ask Lasest Price
Model Number :	TPD/TPE 600
Certification :	API
Payment Terms :	T/T, L/C
Brand Name :	SERVA

Add to Cart

Product Details
Company Profile

SERVA TPD/TPE 600 High Pressure Triplex Pump for cementing and acidizing

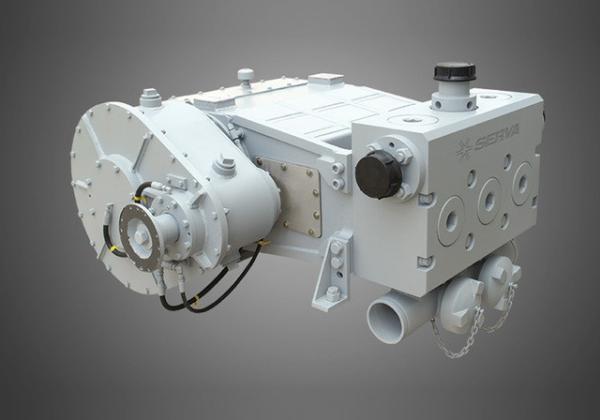

SERVA TPD/TPE 600 Triplex Plunger Pumps

SERVA TPD/TPE 600 Triplex Plunger Pumps are used for cementing and acidizing service. Their short length allows back-to-back placement of two pumps on the unit with less than 102'' total width. TPE600 pumps can be more effectivein preventing the leaking fluid from entering the power end.

Specifications
Maximum Input Horsepower	600 bhp
Maximum Rod Load	100,000 lbs
Stroke Length	6"
Gear Ratio	4.6:1
Plunger	2.75" to 4.5"
Approx. Length	50.25" (1,276 mm)
Approx. Width	52.93" (1,344 mm)
Approx. Height	23.88" (607 mm)
Weight Dry	4,600 lbs

Major Features:

Wider heavy-duty main bearing

Babbitt alloy crosshead coating

Left or right gearbox mounting

Forged alloy steel mono-block fluid end

Left- or right-side suction and discharge connections

High-performance header-ring style packing

Extended TPC 600 pump for option
