Q254-250 Pneumatic Spinning Wrench Api 7k

Ask Lasest Price
Model Number :	Q254-250
Certification :	API 7K
Payment Terms :	T/T, L/C

Add to Cart

Product Details
Company Profile

Q254-250 Pneumatic Spinning Wrench Api 7k

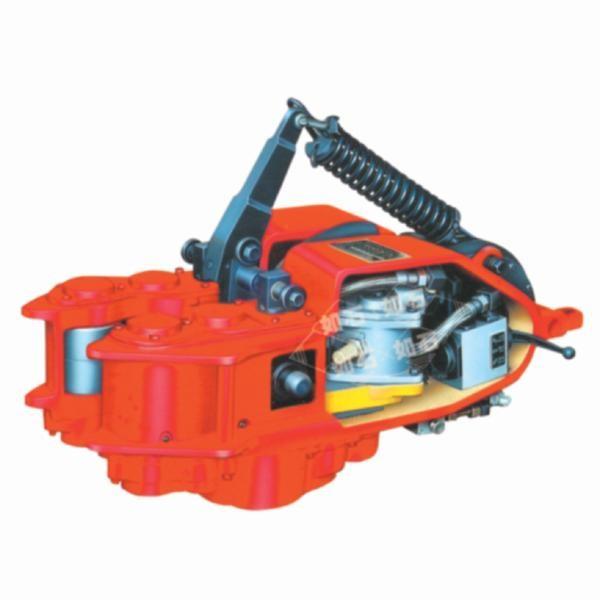

Q254-250 PNEUMATIC SPINNING WRENCH

The wrench is the best replacement of the spinning rope (or chain). It is applied for the mechanized spinning operation. The applicable range of pipe diameter is wide, and it can be arbitrarily adjusted whenever necessary.

There are two configurations for clamping apparatus: air tyre and air cylinder. It is designed and manufactured according to API Spec 7K “Specification for Drilling Equipment”.

Model		Q140-200	Q254-250	Q254-300Y
Drive mode		Pneumatic		Hydraulic
Size range	mm	88.9-139.7	88.9-254	88.9-254
Size range	in	31/2-51/2	31/2-10	31/2-10
Air pressure	MPa	0.5-0.9	0.5-0.9
Air pressure	psi	72-130	72-130
Pressure rating	Mpa			14
Pressure rating	psi			2000
Max. brake torque	Nm	2000	2500	3000
Max. brake torque	Ft.lbf	1475	1840	2210
Speed	RPM	0-90	0-120	0-95
Air consumption	m3/min	10.3	15
Air consumption	ft3/min	360	529
flow	LPM			120-140
flow	GPM			32-37
Size	mm	1400×530×835	1250×570×465	1100×560×700
Size	in	55×21×33	49×23×18	44×23×28
Weight	Kg	378	440	400
Weight	lb	833	971	880
