TS Pneumatic Spider
Description:
Pneumatic spider is a kind of special tool used for clamping oil pipe in petroleum gas drilling and production, which is composed of two chucks and multi-page clips, certain amount of inserts, movable pins and bolts, it features flexible operation and easy application which is designed and manufactured according to requirements of API Spec 7K.
Specification:
1.Model: Type TS-100 tubing manual spider
2.Tubulars OD: 1.05~5 3/4 inch
3.Rated Capacity: 100 Tons
4.Standard : API Spec 7K

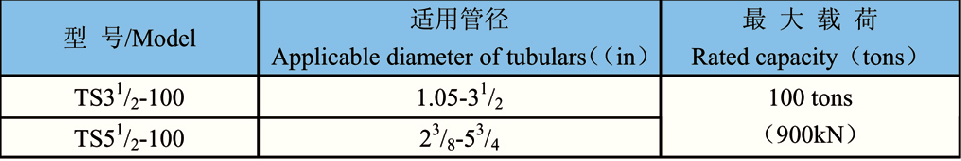

Technical Specification:
Model | Applicable pipe diameter | Quantity of insert | Rated load | |
| tons | kN | |||
| 31/2TS-100 | 33/8 31/2 31/8 27/8 23/8 21/16 2 1.9 1.66 1.315 1.05 | 9 | 100 | 900 |
| 41/2TS-100 | 43/8 41/2 41/4 41/8 4 33/4 31/2 33/8 31/4 31/8 3 27/8 23/8 21/16 1.9 1.66 | 12 | ||
| 51/2TS-100 | 53/4 51/2 5 43/8 4 1/2 41/4 41/8 4 33/4 31/2 33/8 31/4 31/4 3 27/8 23/8 | 12 | ||
|
|
