Halliburton HT400 Plunger Pump Seals SPM TWS600 / TWS2250/ Gardner Denver 2250

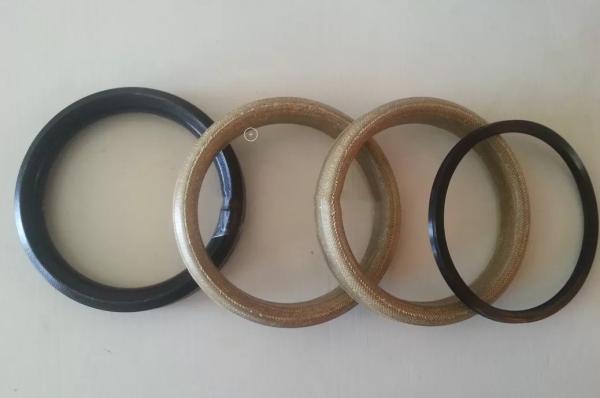

Halliburton HT400 plunger pump seals, SPM TWS600 plunger pump, TWS2250 Plunger pump, Gardner Denver 2250 plunger pump

Halliburton HT400 Plunger Pump Seals SPM TWS600 / TWS2250/ Gardner Denver 2250

Push Rod Subassembly
L-2 Spacer
	Loc	Part No.
Retainer,Push Rod HT-400TM, Two Piece Nose, L-Spacer	1	316.21066.
O-Ring, 90 Duro, 1 7/8 × 1 5/8 × 1/8, 568-223	2	8.34020.
Tie Rod, Push Rod, L-Spacer, HT-400TM	3	316.25166.
Push Rod, Two Piece, L-Spacer, HT-400TM	4	316.21065.
Retainer, Push Rod Seal Housing, L-2 Spacer, HT-400TM	5	316.10012.
Housing, Push Rod Seal, Floating, L-2 Spacer, HT-400TM	6	316.10013.
O-Ring, 70 Duro, 5 11/16 × 5 1/2 × 3/32, 568-161	7	70.33739.
Seal, Push Rod, L-Spacer, HT-400TM	8	316.10014.

Discharge Valve Subassembly
		Plunger Size
	Loc	3-3/8 inch	4-inch	4-1/2 inch	5-inch	6-inch
Retainer, Cover, HT-400TM	1	316.2102.	316.2202.	316.2202.	316.2502.	316.2502.
Cover, Discharge, Double Guided Valve, HT-400TM	2	316.2107.	316.23091.	316.23091.	316.24044	316.24044
Gasket, Discharge Valve & Cylinder Head Cover, HT-400TM	3	316.21052.	316.22052.	316.22052.	316.25052	316.25052
Ring, Spacer, Discharge Valve & Cylinder Head Cover, HT-400TM	4	316.21051.	316.22051.	316.22051.	316.25051.	316.25051.
Liner, Two Piece Bushing, Valve Guide, HT-400, Brass	5	316.22005.	316.22005.	316.22005.	316.22007.	316.22007.
Insert, Two Piece Bushing, Valve Guide, Special, HT-400	6	316.22004.	316.22004.	316.22004.	316.22006	316.22006
Spring, Valve, HT-400TM, 36lb/in	7	316.2108.	316.2108.	316.2308.	316.27259	316.27259
Valve, HT-400, Frac	8	316.21007.	316.21007.	316.22048.	316.24027	316.24027
Insert, Valve, HT-400TM, Urethane, Acid/Frac Service(Yellow)	9	316.21048.	316.21048.	316.22046.	316.24026	316.24026
Insert, Valve, HT-400TM, Urethane, Standard Service(Brown)	9	316.21006.	316.21006.	316.22049.	316.24037	316.24037
Seat Valve, HT-400TM, Tapered	10	316.21008.	316.21008.	316.210047.	316.24024	316.24024
O-ring, 90 Duro	11	8.34037.	8.34037.	8.34041.	8.34045	8.34045
Retainer, Guide Bushing, HT400	12	316.21096	316.21096	316.23953	316.24043	316.24043

Suction Valve Subassembly
		Plunger Size
	Loc	3-3/8 inch	4-inch	4-1/2 inch	5-inch	6-inch
Retainer, Stop and Spring, HT-400TM, Mach. Cast	1	316.22977.	316.22977.	316.23034	316.25840.	316.25840.
Boot, Suction and Stop, HT-400TM	2	316.25233.	316.25233.	316.25233	316.25233.	316.25233.
Spring, Lock, HT-400	3	316.2125.	316.2125.	316.22252.	316.22253.	316.22253.
Liner, Two Piece Bushing, Valve Guide, HT-400TM, Brass	4	316.22005.	316.22005.	316.22005.	316.22007.	316.22007.
Insert,Two Piece Bushing, Valve Guide, Special,HT-400TM	5	316.22004.	316.22004.	316.22004.	316.22006.	316.22006.
Spring, Valve, HT-400TM, 36lb/in	7	316.2108.	316.2108.	316.2308.	316.27259	316.27259
Valve, HT-400, Frac	8	316.21007.	316.21007.	316.22048.	316.24027	316.24027
Insert, Valve, HT-400TM, Urethane, Acid/Frac Service(Yellow)	9	316.21048.	316.21048.	316.22046.	316.24026	316.24026
Insert, Valve, HT-400TM, Urethane, Standard Service(Brown)	9	316.21006.	316.21006.	316.22049.	316.24037	316.24037
Seat Valve, HT-400TM, Tapered	10	316.21008.	316.21008.	316.210047.	316.24024	316.24024
O-ring, 90 Duro	11	8.34037.	8.34037.	8.34041.	8.34045	8.34045
Retainer, Guide Bushing, HT400	12	316.21096	316.21096	316.23953	316.24043	316.24043


Plunger/cylender Head Cover Subassembly
		Plunger Size
	Loc	3-3/8 inch	4-inch	4-1/2 inch	5-inch	6-inch
Retainer, Cover HT-400TM	1	316.2102.	316.2102.	316.2202.	316.2502.	316.2506.
Cover, Cylinder Head, HT-400TM	2	316.2107.	316.2107.	316.2207.	316.2407.	316.2507.
Gasket, 4 Discharge Valve & Cylinder Head Cover	3	316.21052.	316.21052.	316.22052.	316.25052.	316.25074.
Ring, Spacer, Discharge Valve & Cylinder Head Cover	4	316.21051.	316.21051.	316.22051.	316.25051.	316.25073.
Nose, Plunger, HT-400TM	5	316.2131.	316.2231.	316.2331.	316.2331.	316.2331.
Seal, Plunger Nose Assembly, HT-400TM	6	316.2130.	316.2230.	316.2330.	316.2330.	316.2330.
Plunger, Hard Surface, L-Spacer, HT-400TM	7	316.21026.	316.22294.	316.23085.	316.24296.	316.25162.
Tie Rod, Plunger, HT-400TM	8	316.21028.	316.21028.	316.21028.	316.25165.	316.25165.
Adapter, Pushrod, HT-400TM, Two Piece Nose	9	316.21059.	316.22302.	316.23089.	316.24336.	316.25172.


Fluid-end/flange discharge section subassembly
		Plunger Size
	Loc	3-3/8 inch	4-inch	4-1/2 inch
Flange, discharge, HT-400TM, BLANK	1		316.22980.	316.22980.
Flange, discharge, HT-400TM, CURVED, Rright Hand	1a	316.21676.	316.23019.	316.23019.
Flange, discharge, HT-400TM, CURVED, Left Hand	1b	316.21677.	316.23017.	316.23017.
Seal, Discharge passage,HT-400TM	2	315.27117.	316.2547.	316.2547.
Nut, 1-14NF, Internal Wrenching, 1.03 TL	3	316.11621.	316.11621.	316.11621.
Stud, HT-400TM Fluid End To Thick Discharge Flange	4	316.23013.		316.23013.
Bolt, Tie, 1.375-12 UNF×32.4 in.,Top, Fluid End, HT-400TM, TC	5	316.27488.	316.27488.	316.27488.
Nut, Top Tie Bolt, HT-400TM, TC	6	316.25501.	316.25501.	316.25501.
Washer, Hardened,2.31 O.D ×1.43I.D.,For Top Tie Boldt,	7	316.22493.	316.22493.	316.22493.
Spacer, Inner, Discharge Passage Seal,HT-400TM	8	316.2145.	316.2545.	316.2545.

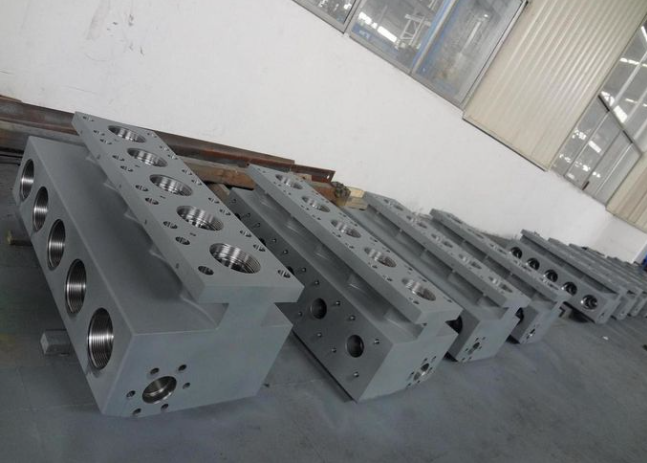

Fluid End Section, HT-400TM PUMP,Not Sleeved	9	316.21951.	316.22982.	316.23951.
Nut, Elastic, Stop,3/4-in.,16 NF	10	70.32760.		70.32760.

Packing Subassembly
		Plunger Size
	Loc	3-3/8 inch	4-inch	4-1/2 inch	5-inch	6-inch
Adapter, Header	1	316.21503	316.22503	316.23503	316.24503	316.27503
Ring Header	2	316.21501	316.22501	316.23501	316.24501	316.27501
Packign Set, 4-in.x 5-in, x 1/2-in. Stock, 3 Rings, Hard, Acid Service	3	316.21525	316.22525	316.23525	316.24525	316.27525
Ring, Backup, Packing, 4-in x 5-in.	4	316.21393	316.22393	316.23393	316.24393	316.27393
Carrier, Seal and Packing, 4-in	5	316.21396	316.22396	316.23396	316.24396	316.27396
Seal, Lube, Packing, WQ, 4-in x 4-1/2-in. x 9/16-in	6	316.21395	316.22395	316.23395	316.24395	316.27395
O-Ring, 90D, 5-in. x 4 3/4-in.x 1/8-in	7	8.34040	8.34045	8.34049	8.34053	8.3405

Halliburton HT400 Plunger Pump Seals SPM TWS600 / TWS2250/ Gardner Denver 2250

Push Rod Subassembly
L-2 Spacer
	Loc	Qty	Part No.
Retainer,Push Rod HT-400TM, Two Piece Nose, L-Spacer	1	3	316.21066.PREM
O-Ring, 90 Duro, 1 7/8 × 1 5/8 × 1/8, 568-223	2	3	8.34020.PREM
Tie Rod, Push Rod, L-Spacer, HT-400TM	3	3	316.25166.PREM
Push Rod, Two Piece, L-Spacer, HT-400TM	4	3	316.21065.PREM
Retainer, Push Rod Seal Housing, L-2 Spacer, HT-400TM	5	3	316.10012.PREM
Housing, Push Rod Seal, Floating, L-2 Spacer, HT-400TM	6	3	316.10013.PREM
O-Ring, 70 Duro, 5 11/16 × 5 1/2 × 3/32, 568-161	7	3	70.33739.PREM
Seal, Push Rod, L-Spacer, HT-400TM	8	6	316.10014.PREM

Discharge Valve Subassembly
Plunger Size
	Loc	Qty	3-3/8 inch	4-inch	4-1/2 inch
Retainer, Cover, HT-400TM	1	3	316.2102.PREM	316.2202.PREM	316.2202.PREM
Cover, Discharge, Double Guided Valve, HT-400TM	2	3	316.2107.PREM	316.23091.PREM	316.23091.PREM
Gasket, Discharge Valve & Cylinder Head Cover, HT-400TM	3	3	316.21052.PREM	316.22052.PREM	316.22052.PREM
Ring, Spacer, Discharge Valve & Cylinder Head Cover, HT-400TM	4	3	316.21051.PREM	316.22051.PREM	316.22051.PREM
Liner, Two Piece Bushing, Valve Guide, HT-400, Brass	5	6	316.22005.PREM	316.22005.PREM	316.22005.PREM
Insert, Two Piece Bushing, Valve Guide, Special, HT-400	6	6	316.22004.PREM	316.22004.PREM	316.22004.PREM
Spring, Valve, HT-400TM, 36lb/in	7	3	316.2108.PREM	316.2108.PREM	316.2308.PREM
Valve, HT-400, Frac	8	3	316.21007.PREM	316.21007.PREM	316.22048.PREM
Insert, Valve, HT-400TM, Urethane, Acid/Frac Service(Yellow)	9	3	316.21048.PREM	316.21048.PREM	316.22046.PREM
Insert, Valve, HT-400TM, Urethane, Standard Service(Brown)	9	3	316.21006.PREM	316.21006.PREM	316.22049.PREM
Seat Valve, HT-400TM, Tapered	10	3	316.21008.PREM	316.21008.PREM	316.210047.PREM
O-ring, 90 Duro	11	3	8.34037.PREM	8.34037.PREM	8.34041.PREM


Suction Valve Subassembly
Plunger Size
	Loc	Qty	3-3/8 inch	4-inch	4-1/2 inch	5-inch	6-inch
Retainer, Stop and Spring, HT-400TM, Mach. Cast	1	3	316.22977.PREM	316.22977.PREM	316.22242.PREM	316.25840.PREM	316.25840.PREM
Boot, Suction and Stop, HT-400TM	2	6	316.25233.PREM	316.25233.PREM	316.25233.PREM	316.25233.PREM	316.25233.PREM
Spring, Lock, HT-400	3	3	316.2125.PREM	316.2125.PREM	316.22252.PREM	316.22253.PREM	316.22253.PREM
Liner, Two Piece Bushing, Valve Guide, HT-400TM, Brass	4	6	316.22005.PREM	316.22005.PREM	316.22005.PREM	316.22007.PREM	316.22007.PREM
Insert,Two Piece Bushing, Valve Guide, Special,HT-400TM	5	6	316.22004.PREM	316.22004.PREM	316.22004.PREM	316.22006.PREM	316.22006.PREM
Retainer Guide Bushing, HT-400, Tapered Seat Bore	11	3	316.21096.PREM	316.21096.PREM	316.23953.PREM	316.24043.PREM	316.24043.PREM


Plunger/cylender Head Cover Subassembly
Plunger Size
	Loc	Qty	3-3/8 inch	4-inch	4-1/2 inch	5-inch	6-inch
Retainer, Cover HT-400TM	1	6	316.2102.PREM	316.2102.PREM	316.2202.PREM	316.2502.PREM	316.2506.PREM
Cover, Cylinder Head, HT-400TM	2	3	316.2107.PREM	316.2107.PREM	316.2207.PREM	316.2407.PREM	316.2507.PREM
Gasket, 4 Discharge Valve & Cylinder Head Cover	3	6	316.21052.PREM	316.21052.PREM	316.22052.PREM	316.25052.PREM	316.25074.PREM
Ring, Spacer, Discharge Valve & Cylinder Head Cover	4	6	316.21051.PREM	316.21051.PREM	316.22051.PREM	316.25051.PREM	316.25073.PREM
Nose, Plunger, HT-400TM	5	3	316.2131.PREM	316.2231.PREM	316.2331.PREM	316.2331.PREM	316.2331.PREM
Seal, Plunger Nose Assembly, HT-400TM	6	3	316.2130.PREM	316.2230.PREM	316.2330.PREM	316.2330.PREM	316.2330.PREM
Plunger, Hard Surface, L-Spacer, HT-400TM	7	3	316.21026.PREM	316.22294.PREM	316.23085.PREM	316.24296.PREM	316.25162.PREM
Tie Rod, Plunger, HT-400TM	8	3	316.21028.PREM	316.21028.PREM	316.21028.PREM	316.25165.PREM	316.25165.PREM
Adapter, Pushrod, HT-400TM, Two Piece Nose	9	3	316.21059.PREM	316.22302.PREM	316.23089.PREM	316.24336.PREM	316.25172.PREM


Fluid-end/flange discharge section subassembly
Plunger Size
	Loc	Qty	3-3/8 inch	4-inch	4-1/2 inch
Flange, discharge, HT-400TM, BLANK	1	1		316.22980.PREM	316.22980.PREM
Flange, discharge, HT-400TM, CURVED, Rright Hand	1a	1	316.21676.PREM	316.23019.PREM	316.23019.PREM
Flange, discharge, HT-400TM, CURVED, Left Hand	1b	1	316.21677.PREM	316.23017.PREM	316.23017.PREM
Seal, Discharge passage,HT-400TM	2	6	315.27117.PREM	316.2547.PREM	316.2547.PREM
Nut, 1-14NF, Internal Wrenching, 1.03 TL	3	4	316.11621.PREM	316.11621.PREM	316.11621.PREM
Stud, HT-400TM Fluid End To Thick Discharge Flange	4	4	316.23013.PREM		316.23013.PREM
Bolt, Tie, 1.375-12 UNF×32.4 in.,Top, Fluid End, HT-400TM, TC	5	1	316.27488.PREM	316.27488.PREM	316.27488.PREM
Nut, Top Tie Bolt, HT-400TM, TC	6	2	316.25501.PREM	316.25501.PREM	316.25501.PREM
Washer, Hardened,2.31 O.D ×1.43I.D.,For Top Tie Boldt,	7	2	316.22493.PREM	316.22493.PREM	316.22493.PREM
Spacer, Inner, Discharge Passage Seal,HT-400TM	8	2	316.2145.PREM	316.2545.PREM	316.2545.PREM
Fluid End Section, HT-400TM PUMP,Not Sleeved	9	3	316.21951.PREM	316.22982.PREM	316.23951.PREM
Nut, Elastic, Stop,3/4-in.,16 NF	10	2	70.32760.PREM		70.32760.PREM

Product Tags:

Halliburton HT400 Plunger Pump Seals

TWS2250 Plunger Pump Parts

High Pressure Plunger Pump Seals
