DD ( TA ) Type Center Latch Elevator API 8C Drilling Hoisting Equipment

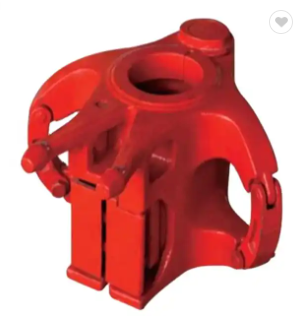

DD(TA)Type Center Latch Elevator

Introduction:

The Elevators are hoisting tools for handling 90°shoulder drill pipe, casing, tubing and drill collar in oil and gas field. The elevators are designed and manufactured according to API Spec 8C-specification for drilling and production Hoisting Equipment.

Technical Specification:

pipe		Drill Pipe				Casing
Model		DD 65	DD 100	DD 125	DD 150	DD 100	DD 150
Pipe O.D.(in)



		2 3/8	2 3/8	2 3/8	2 3/8
		2 7/8	2 7/8	2 7/8	2 7/8
			3 1/2	3 1/2	3 1/2
			4		4
			4 1/2		4 1/2	4 1/2	4 1/2
			5		5	5	-
					5 1/2	5 1/2	10 3/4
Max Load	KN	585	900	1100	1350	900	1350
Max Load	Tons	65	100	125	150	100	150

Pipe		Tubing					Drill Collar
Model		DD(TA) 35	DD(TA) 65	DD(TA) 100	DD 125	DD 150	DD (TA) 35	DD (TA) 65	DD (TA) 100	DD 150
		1.05
		1.315
		1.66	1.66
		1.9	1.9	1.9
			2 3/8	2 3/8	2 3/8	2 3/8
			2 7/8	2 7/8	2 7/8	2 7/8	2 7/8	2 7/8	2 7/8
				3 1/2	3 1/2	3 1/2	3 1/8	3 1/8	3 1/2
				4		4			4 1/8
				4 1/2		4 1/2			4 3/4
				5		5			5
									5 1/4	9-11 1/4
Max Load	KN	315	585	900	1100	1350	315	585	900	1350
Max Load	Tons	35	65	100	125	150	35	65	100	150
