API 9A Steel Wire Rope Drilling Rig Spare Parts 6 X 19S-IWRC Drilling Line

Ask Lasest Price
Brand Name :	ATO
Certification :	API 9A
Payment Terms :	L/C, T/T

Add to Cart

Product Details
Company Profile

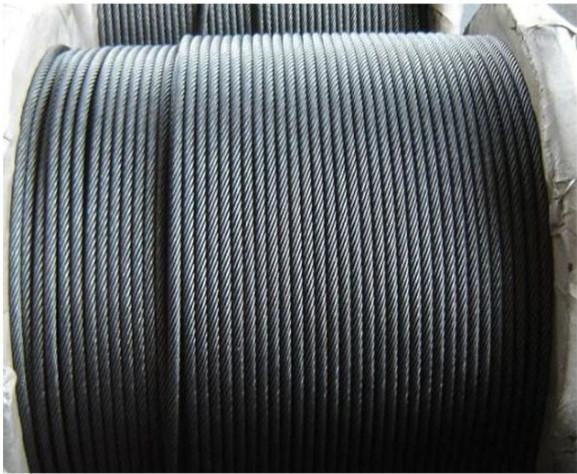

API 9A Steel Wire Rope Drilling Rig Spare Parts 6 X 19S-IWRC Drilling Line

API 9A Drilling Rig Steel Wire Rope Drilling Rig Spare Parts 6x19S-IWRC Drilling Line

Drilling Line description of Drilling Rig Spare Parts:

The various lines for rotary drilling rigs require a complex balance of wire rope characteristics: abrasion resistance, crush resistance, fatigue resistance, strength, bendability and stability.
Each rig is different, of course, but the chart below provides general guidelines for selecting the right rope.

Steel Wire Rope Advantage:

♦ Excellent anti-abrasion performance and extrusion-resistance.

♦ Excellent Stability.

♦ Breaking force higher than fiber core steel wire rope.

♦ Customizing by customer’s requirements Occasions:

♦ Drilling line.

♦ Wire rope for workover.

Nominal diameter	Reference weight	Nominal Tensile Strength/MPa
		1770	1960	2160	IPS	EIP	EEIP
/mm	kg/100m	Minimum breaking force/kN
12.7	64.5	102	113	124	102	118	130
13	67.6	106	118	130	107	124	136.2
14.3	81.8	129	143	157	129	149	165
16	102	161	179	197	159	185	204
18	130	204	226	249	202	233	257
19	144	227	252	278	226	259	285
20	160	252	279	308	250	287	316
22	194	305	338	372	302	348	383
24	230	363	402	443	358	412	453
25.4	258	407	450	496	399	460	506
26	270	426	472	520	418	481	529
28	314	494	547	603	483	555	610
28.6	327	515	571	629	503	578	636
31.8	404	637	706	778	617	711	782
32	410	645	715	787	625	720	792
34.9	487	767	850	937	743	854	943
35	490	772	855	942	747	859	948
36	518	817	904	997	789	906	999
38	578	910	1010	1110	876	1010	1110
38.1	581	915	1010	1120	880	1010	1110
40	640	1010	1120	1230	962	1100	1220
41.3	682	1080	1190	1310	1020	1170	1300
44	774	1220	1350	1490	1150	1330	1470
44.5	792	1250	1380	1520	1180	1360	1500
45	810	1280	1410	1560	1210	1390	1530
48	922	1450	1610	1770	1370	1580	1740
