Alloy Steel Drilling Rig Rotary Table 300r/min Max.Speed API Spec 7k

Ask Lasest Price
Model Number :	ZP375
Certification :	API
Payment Terms :	L/C, T/T

Add to Cart

Product Details
Company Profile

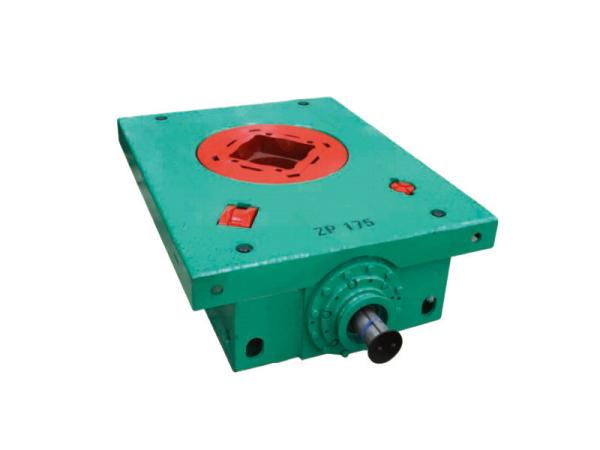

Alloy Steel Drilling Rig Rotary Table 300r/min Max.Speed API Spec 7k

Rotary Tables

Gear wheel and pinions are all made of alloy steel.

According to needs, master bushing and kelly roller bushing can adopt square drive or pin drive.

Pin drive type master bushing can put into API standard kelly or hex kelly roller bushing Long clips and short clips are applicable.Full lubrication and steady seal.

Rotatry table is according with API Spec 7k standard.

型号type	ZP175	ZP520	ZP205-Ⅰ	ZP205-Ⅱ	ZP275	ZP375	ZP495
通孔直径(mm) dia.of opening	444.5 (17-1/2)	520.7 (20-1/2)	520.7 (20-1/2)	520.7 (20-1/2)	698.5 (27-1/2)	952.5 (37-1/2)	1257.3 (49-1/2)
中心距(mm) table axis center innerrow sprocket	1118(44)	1353 (53-1/4)	1353 (53-1/4)	1118(44)	1353 (53-1/4)	1353 (53-1/4)	1651(65)
最大静载荷(KN) max.dead load	2700	1960	3150	3150	4540	5850	7250
最大工作扭矩(N.m) max.working torque	13729%		22555	22555	27459	32362	37000
最高转速(r/min) max.speed	350	300	300	300	300	300	300
齿轮传动化 gear rotio	3.75	3.22	3.79	3.79	3.67	3.56	3.93
外形尺寸(mm) overall dimension	1974×1366×560	2333×1440×705	2204×1410×610	1969×1410×610	2390×1670×685	2468×1810×718	2940×2184×813
重量(kg) weight	3666.5	4500	5542	5450	6250	7970	11626
