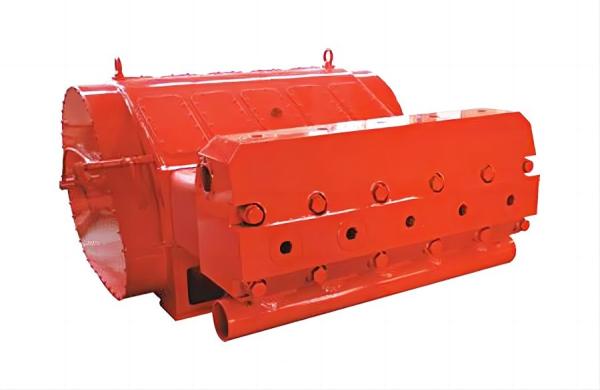

JY-5ZB-2500(1860)

JY-5ZB-2500 five-cylinder plunger pump is mainly used in fracturing, acidizing, cementing and sand control operations. It has the characteristics of large output power, high pressure and large displacement; the hydraulic end can choose a variety of plungers to meet the user's requirements for different pressures and displacements; the independent packing box is convenient to disassemble and easy to replace; the double helical gear vice transmission, the equipment is evenly stressed to improve the smooth operation of the large pump.

Main Technical Parameters

Maximum brake power: 2500hp (1866kW)

Maximum load of connecting rod: 855kN(192325lbf)

Stroke: 203.2mm(8")

Max. stroke: 330rpm

Transmission ratio: 6.353:1

Dimension: 2199×1980×1113mm

Length X width X height: (86.6"×78"×43.8")

Weight: 6760kg(14903lbs)
